100kw 220kWh Industrial Energy Storage Unit Liquid Cooled Large Scale
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
100kw 220kWh Industrial Energy Storage
,220kWh Industrial Energy Storage Unit
,Energy Storage Unit Liquid Cooled
Product Description
100kW 220kWh Industrial Energy Storage Unit - Liquid Cooled Large Scale

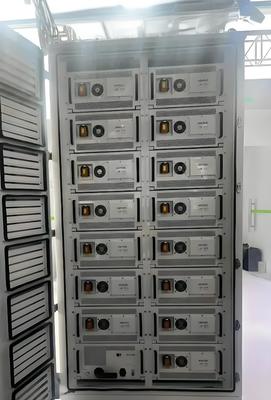

100kW/220kWh liquid cooled large-scale industrial Energy Storage Cabinet unit
Product Overview
This 220kWh industrial and commercial energy storage system is a fully integrated, pre-configured solution designed for diverse applications including photovoltaic energy, industrial and commercial facilities, power grids, power plants, charging stations, and public services.
Off-Grid Microgrid Applications
Ideal for areas with unstable electricity, including villas, farms, islands, oil extraction sites, and other locations without reliable power access. Key functions include self-consumption, emergency backup power, diesel generator management, and wind turbine integration.
Primarily suited for industrial and commercial microgrid energy storage solutions, this system offers exceptional efficiency and reliability for small to medium-sized enterprises. Capacity expansion is easily achieved through parallel cabinet connections.
Key Features
Security
- Multi-level protection: software, hardware, and electrical safeguards
- Independent cabinets ensure electrical and fire safety isolation to prevent accident propagation
- DC to AC conversion prevents DC arcing hazards
Efficiency
- Cluster-by-cluster management eliminates parallel losses and enhances energy storage revenue
- PCS three-level topology delivers maximum efficiency of 99%
High Integration
- Comprehensive integration: battery + BMS + PCS + EMS + fire protection + temperature control
Ease of Use
- Rapid deployment with decentralized deployment and centralized scheduling
- Distributed architecture supports easy expansion via AC-side parallel cabinet connections
- Fully modular design simplifies maintenance procedures
- Cloud monitoring and mobile app support for remote management
Technical Specifications
| Project Category | Specification Parameters |
|---|---|
| Cell Type | Lithium iron phosphate 280Ah battery cell |
| Rated Energy | 896Wh |
| Rated Voltage | 3.2V |
| Depth Of Discharge | 90% |
| Cycle Life | >6000 (25℃, 0.5C, 80% EOL) |
| DC Side Parameters | |
| Rated Electric Quantity | 215kWh |
| Rated Voltage of Battery | 768V |
| Battery Voltage Range | 624V~864V |
| Maximum DC Current | 150A |
| Number of Battery Modules | 5 |
| AC Side Parameters | |
| Rated Power | 100kW |
| Rated Grid Voltage | 400V |
| Rated AC Current | 140A |
| Allowable Voltage Range | 360V~440V |
| Rated Grid Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| Power Factor Range | -1~1 |
| AC Access Method | Three-phase four-wire system |
| System Parameters | |
| System Efficiency | >90% |
| Cycle Life | >6000 (25℃, 0.5C, >98% DOD, 70% EOL) |
| Weight | 3000kg |
| Dimensions | 1500×2300×1650mm |
| Cooling Method | Liquid cooling |
| Allowable Ambient Temperature | -30~50℃ |
| Altitude | 4000m (>2000m requires reduced usage) |
| Protection Grade | IP54 |
| Internal Isolation Method | Transformerless |
| Communication Model | RS485/CAN/Ethernet |
| Operating Mode | Peak valley electricity price, demand response, microgrid, backup power |
| Optional Features | |
| Wireless Communication | 4G, GPS/Beidou |
| Remote Monitoring | Cloud EMS, mobile app |
| Automatic Off-Grid Switching | STS module |
