IP55 Waterproof Industrial And Commercial Energy Storage 215KWH
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
Waterproof Industrial And Commercial Energy Storage
,Industrial And Commercial Energy Storage 215KWH
,IP55 commercial and industrial energy storage
Product Description

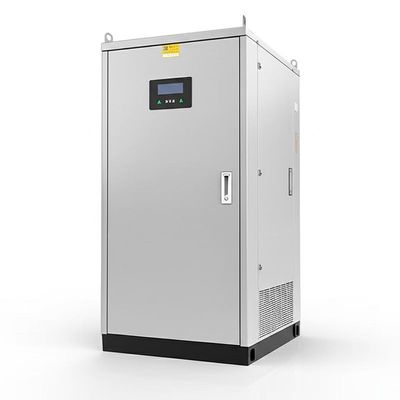

IP55 Waterproof Industrial and Commercial Energy Storage - 215KWH
Our industrial and commercial energy storage cabinet offers a fully integrated, pre-configured 215KWH solution with IP55 waterproof rating and integrated air conditioning system.
We provide comprehensive energy storage cabinet solutions tailored to your specific requirements. Contact us via email or WhatsApp for detailed inquiries and professional assistance.
Product Overview
This industrial and commercial energy storage system is a fully integrated, pre-configured solution designed for various applications including:
- Photovoltaic energy systems
- Industrial and commercial facilities
- Grid and power plant applications
- Charging stations
- Public service infrastructure
Off-Grid Microgrid Applications
Ideal for areas with unstable electricity supply, including villas, farms, islands, oil extraction sites, and other locations without reliable power infrastructure.
Key functions include self-consumption optimization, emergency backup power, diesel generator management, and wind turbine integration.
System Components
01 Cooling Air Duct
02 Air Conditioning System
03 Battery PACK
04 High Voltage BMS
05 High Voltage Box
06 Fire Protection System
07 EMS Display Screen
08 EMS Host
09 PCS (Power Conversion System)
10 Distribution System
Air-Cooled Energy Storage Cabinet Specifications
| Product Model | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Battery Capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| External Dimensions (H*W*D) | 900*680*680 | 1300*680*680 | 1600*760*760 | 2050*950*950 | 2500*950*950 | 2100*1050*1050 | 2500*1850*1150 | 2100*1650*1050 |
| Internal Dimensions (H*W*D) | 750*600*600 | 1100*600*600 | 1400*700*700 | 1800*800*800 | 2300*800*800 | 1950*940*940 | 2300*1700*1000 | 1950*1540*940 |
| PCS Power | 3-5kW | 8-10kW | 8-10kW | 10-20kW | 20-30kW | 50kW | 50kW | 100kW |
Additional Specifications:
- Cabinet Material: Steel plate/stainless steel/galvanized sheet
- Opening Mode: Front opening door/front and rear opening door
- Heat Dissipation: Air cooled air conditioner/air cooled fan (optional)
- Fire Protection: Hot melt adhesive/heptafluoropropane/perfluorohexane (optional)
- Ambient Temperature: -40°C to 75°C
- Protection Grade: IP20/IP55/IP66
- System Certification: ISO9001, ISO14001, ISO45001
- Brand: HUAHUI
Liquid-Cooled Energy Storage Cabinet Specifications
| Product Model | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Battery Capacity | 325kWh | 232kWh | 232kWh |
| External Dimensions (H*W*D) | 2265*1330*1330 | 2265*1330*1330 | 2265*960*1330 |
| Internal Dimensions (H*W*D) | 2100*1240*1240 | 2100*1240*1240 | 2100*890*1240 |
| PCS Power | 100kW | 100kW | 100kW |
Detailed Product Parameters
325kWh Liquid Cooled Energy Storage Cabinet
| Product Model | HH-231313-01 |
|---|---|
| Product Size | H*W*D 2300*1350*1350 |
| Product Capacity | 325kWh |
| Battery Configuration | 7 x 46.4kWh liquid cooled PACKs |
200-215kWh Air-Cooled Energy Storage Cabinet
| Product Model | HH-221511-01 |
|---|---|
| Product Size | 200kWh: 2200*1500*1100 215kWh: 2360*1660*1100 |
| Product Capacity | 200-215kWh |
| Battery Configuration | 14-15 x 48V280AH |
Key Features
Security
- Multi-level protection: software + hardware + electrical safety
- Independent cabinets for electrical and fire safety isolation
- DC to AC conversion prevents DC arcing hazards
Efficiency
- Cluster management eliminates parallel losses and increases energy storage revenue
- PCS three-level topology with maximum efficiency of 99%
High Integration
- Complete integration: battery + BMS + PCS + EMS + fire protection + temperature control
Ease of Use
- Rapid deployment with decentralized deployment and centralized scheduling
- Distributed architecture with easy expansion via AC-side parallel cabinet connection
- Fully modular design for simplified maintenance
- Cloud monitoring and mobile app support
