100kw Energy Storage Cabinet 220kWh Energy Storage Unit Liquid Cooling
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
100kw 220kWh Energy Storage Unit
,220kWh Energy Storage Unit
,100kw Energy Storage Cabinet
Product Description

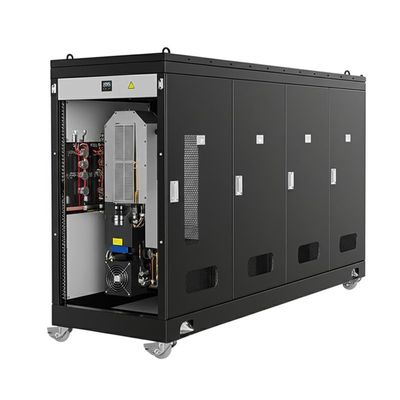

100kW Energy Storage Cabinet - 220kWh Liquid Cooling Unit
Advanced 100kW/220kWh liquid cooling energy storage cabinet unit designed for industrial and commercial applications.
We offer comprehensive energy storage cabinet solutions tailored to your specific requirements. Contact us via email or WhatsApp for detailed inquiries and professional assistance.
Product Overview
This 220kWh industrial and commercial energy storage system is a fully integrated, pre-configured solution ideal for various applications including photovoltaic energy systems, industrial and commercial facilities, power grids, power plants, charging stations, and public services.
Off-Grid Microgrid Applications
Perfect for areas with unstable electricity supply, including villas, farms, islands, oil extraction sites, and other locations without reliable grid access. Key functions include self-consumption, emergency backup power, diesel generator management, and wind turbine integration.
This product is specifically designed for industrial and commercial microgrid energy storage solutions, offering exceptional efficiency and reliability for small to medium-sized enterprises. For increased capacity requirements, multiple cabinets can be connected in parallel.
Key Features
Enhanced Safety
- Multi-level protection: software, hardware, and electrical safeguards
- Independent cabinets provide electrical and fire safety isolation
- DC to AC conversion prevents DC arcing hazards
High Efficiency
- Cluster-by-cluster management eliminates parallel losses
- PCS three-level topology with maximum efficiency of 99%
Integrated Design
- Complete integration: battery + BMS + PCS + EMS + fire protection + temperature control
User-Friendly Operation
- Rapid deployment with decentralized deployment and centralized scheduling
- Distributed architecture with easy expansion capabilities
- Supports parallel connection of multiple cabinets on AC side
- Fully modular design for simplified maintenance
- Cloud monitoring and mobile app support
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Cell Type | Lithium iron phosphate 280Ah battery cell |
| Rated Energy | 896Wh |
| Rated Voltage | 3.2V |
| Depth of Discharge | 90% |
| Cycle Life | >6000 cycles (25℃, 0.5C, 80% EOL) |
| DC Side Parameters | |
| Rated Electric Quantity | 215kWh |
| Rated Battery Voltage | 768V |
| Battery Voltage Range | 624V~864V |
| Maximum DC Current | 150A |
| Number of Battery Modules | 5 |
| AC Side Parameters | |
| Rated Power | 100kW |
| Rated Grid Voltage | 400V |
| Rated AC Current | 140A |
| Allowable Voltage Range | 360V~440V |
| Rated Grid Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| Power Factor Range | -1~1 |
| AC Access Method | Three-phase four-wire system |
| System Parameters | |
| System Efficiency | >90% |
| Cycle Life | >6000 cycles (25℃, 0.5C, >98% DOD, 70% EOL) |
| Weight | 3000kg |
| Dimensions | 1500×2300×1650mm |
| Cooling Method | Liquid cooling |
| Allowable Ambient Temperature | -30~50℃ |
| Altitude | 4000m (>2000m requires reduced usage) |
| Protection Grade | IP54 |
| Internal Isolation Method | Transformerless |
| Communication Model | RS485/CAN/Ethernet |
| Operating Mode | Peak valley electricity price, demand response, microgrid, backup power |
| Optional Features | |
| Wireless Communication | 4G, GPS/Beidou |
| Remote Monitoring | Cloud EMS, mobile app |
| Automatic Off-Grid Switching | STS module |
