5kWh-30kWh Photovoltaic Energy Storage Stackable Household Energy Storage
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
30kWh Photovoltaic Energy Storage
,5kWh Photovoltaic Energy Storage
,Stackable Household Energy Storage
Product Description

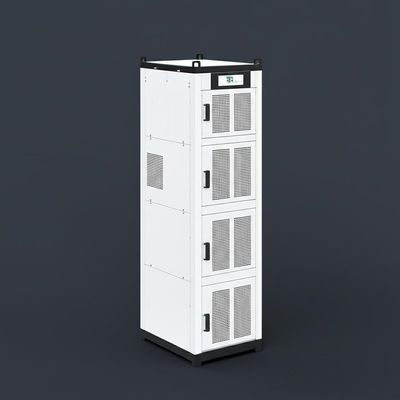

Stackable 5-30kWh Household Photovoltaic Energy Storage Cabinet
Our stackable energy storage cabinet offers a fully integrated pre-configured solution for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services. Custom solutions available upon request.
Applications
- Industrial and commercial microgrid energy storage solutions
- Off-grid systems for areas with unstable electricity (villas, farms, islands, oil extraction)
- Self-use, emergency backup power, oil engine/wind turbine management
- Scalable capacity through parallel cabinet connections
System Components
01 Cooling Air Duct
06 Fire Protection System
02 Air Conditioning System
07 EMS Display Screen
03 Battery PACK
08 EMS Host
04 High Voltage BMS
09 PCS
05 High Voltage Box
10 Distribution System
Technical Specifications
Air-Cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Battery Capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| External Dimensions (H*W*D mm) | 900*680*680 | 1300*680*680 | 1600*760*760 | 2050*950*950 | 2500*950*950 | 2100*1050*1050 | 2500*1850*1150 | 2100*1650*1050 |
| PCS Power | 3-5kW | 8-10kW | 8-10kW | 10-20kW | 20-30kW | 50kW | 50kW | 100kW |
| Ambient Temperature | -40°C to 75°C | |||||||
| Protection Grade | IP20/IP55/IP66 | |||||||
Liquid-Cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Battery Capacity | 325kWh | 232kWh | 232kWh |
| External Dimensions (H*W*D mm) | 2265*1330*1330 | 2265*1330*1330 | 2265*960*1330 |
| PCS Power | 100kW | ||
| Ambient Temperature | -40°C to 65°C | ||
Key Features
Security
Multi-level protection (software+hardware+electrical), independent safety isolation cabinets, DC to AC conversion to prevent arcing
Efficiency
Cluster management eliminates parallel losses, PCS three-level topology with 99% max efficiency
High Integration
Combines battery, BMS, PCS, EMS, fire protection, and temperature control in one unit
Ease of Use
Modular design, rapid deployment, AC-side parallel connection support, cloud monitoring + mobile app
