100kw 220kWh Industrial And Commercial Energy Storage Unit Liquid Cooling
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
220kWh Industrial And Commercial Energy Storage
,100kw Industrial And Commercial Energy Storage
,Energy Storage Unit Liquid Cooling
Product Description

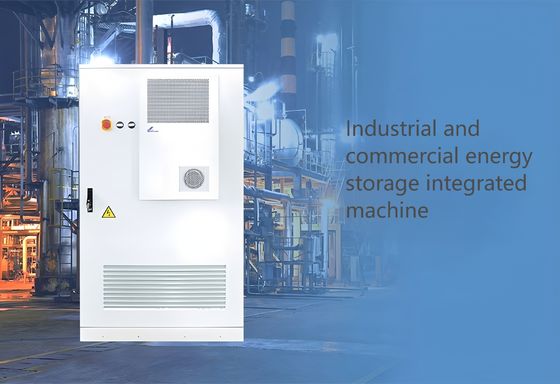

100kW/220kWh Industrial and Commercial Energy Storage Unit - Liquid Cooling
A fully integrated, pre-configured energy storage solution designed for photovoltaic energy systems, industrial and commercial applications, power grids, charging stations, and public services.
Application Scenarios
Grid-Connected Systems: Ideal for photovoltaic energy, industrial and commercial facilities, power grids, power plants, charging stations, and public services.
Off-Grid Microgrid Systems: Perfect for areas with unstable electricity, villas, farms, islands, oil extraction sites, and other locations without reliable power access. Primary functions include self-consumption, emergency backup power, diesel generator management, and wind turbine integration.
Scalability: Designed for industrial and commercial microgrid energy storage solutions. Multiple cabinets can be connected in parallel to increase capacity as needed.
Key Features
Security
- Multi-level protection: software, hardware, and electrical safeguards
- Independent cabinets provide electrical and fire safety isolation
- DC to AC conversion prevents DC arcing hazards
Efficiency
- Cluster-by-cluster management eliminates parallel losses
- PCS three-level topology with maximum efficiency of 99%
High Integration
- Fully integrated system: battery + BMS + PCS + EMS + fire protection + temperature control
Ease of Use
- Rapid deployment with decentralized deployment and centralized scheduling
- Distributed architecture supports easy expansion via AC-side parallel connection
- Fully modular design for simplified maintenance
- Cloud monitoring and mobile app support
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Cell Type | Lithium iron phosphate 280Ah battery cell |
| Rated Energy | 896Wh |
| Rated Voltage | 3.2V |
| Depth of Discharge | 90% |
| Cycle Life | >6000 cycles (25℃, 0.5C, 80% EOL) |
| DC Side Parameters | |
| Rated Electric Quantity | 215kWh |
| Battery Rated Voltage | 768V |
| Battery Voltage Range | 624V~864V |
| Maximum DC Current | 150A |
| Number of Battery Modules | 5 |
| AC Side Parameters | |
| Rated Power | 100kW |
| Rated Grid Voltage | 400V |
| Rated AC Current | 140A |
| Allowable Voltage Range | 360V~440V |
| Rated Grid Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| Power Factor Range | -1~1 |
| AC Access Method | Three-phase four-wire system |
| System Parameters | |
| System Efficiency | >90% |
| Cycle Life | >6000 cycles (25℃, 0.5C, >98% DOD, 70% EOL) |
| Weight | 3000kg |
| Dimensions | 1500×2300×1650mm |
| Cooling Method | Liquid cooling |
| Operating Temperature | -30~50℃ |
| Maximum Altitude | 4000m (requires reduced usage above 2000m) |
| Protection Rating | IP54 |
| Internal Isolation | Transformerless |
| Communication | RS485/CAN/Ethernet |
| Operating Modes | Peak valley electricity price, demand response, microgrid, backup power |
Optional Features
- Wireless communication: 4G, GPS/Beidou
- Remote monitoring: Cloud EMS, mobile app
- Automatic off-grid switching: STS module
