45kWh Industrial Energy Storage IP66 Business Energy Storage 100kW
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
45kWh Industrial Energy Storage
,Industrial Energy Storage IP66
,Business Energy Storage 100kW
Product Description

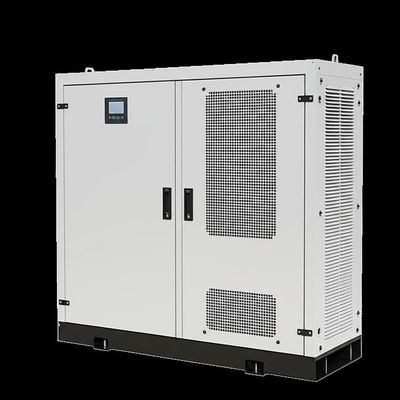

45kWh Air-Cooled Energy Storage Integrated Cabinet
Our IP55/IP66 rated industrial and commercial energy storage cabinet features integrated air conditioning temperature control, designed for distributed photovoltaic energy storage applications. We offer customized solutions tailored to your specific requirements.
Product Introduction
- Fully integrated pre-configured solution suitable for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services
- Ideal for off-grid microgrid systems in areas with unstable electricity supply including villas, farms, islands, and oil extraction sites
- Supports self-use, emergency backup power, oil engine management, and wind turbine management
- Efficient and reliable solution for small and medium-sized enterprises with parallel cabinet connection capability for increased capacity
Product System Diagram
01 Cooling air duct
06 Fire Protection System
02 Air conditioning system
07 EMS Display Screen
03 Battery PACK
08 EMS host
04 High voltage BMS
09 PCS
05 High Voltage Box
10 Distribution System
Product Specifications
Air-Cooled Energy Storage Cabinet Models
| PRODUCT MODEL | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Battery capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| External dimensions (H*W*D) | 900*680*680 | 1300*680*680 | 1600*760*760 | 2050*950*950 | 2500*950*950 | 2100*1050*1050 | 2500*1850*1150 | 2100*1650*1050 |
| Cabinet material | Steel plate/stainless steel/galvanized sheet | |||||||
| Protection grade | IP20/IP55/IP66 | |||||||
| Ambient Temperature | -40°C to 75°C | |||||||
Liquid-Cooled Energy Storage Cabinet Models
| PRODUCT MODEL | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Battery capacity | 325kWh | 232kWh | 232kWh |
| External dimensions (H*W*D) | 2265*1330*1330 | 2265*1330*1330 | 2265*960*1330 |
| Ambient Temperature | -40°C to 65°C | ||
Key Features
- Security: Multi-level protection with software+hardware+electrical safeguards, independent cabinets for electrical/fire safety isolation, DC to AC conversion to prevent arcing
- Efficient: Cluster management eliminates parallel losses (99% max efficiency with PCS three-level topology)
- High integration: Combines battery+BMS+PCS+EMS+fire protection+temperature control in one unit
- Easy to use: Rapid deployment, modular design for easy maintenance, supports cloud monitoring and mobile app
