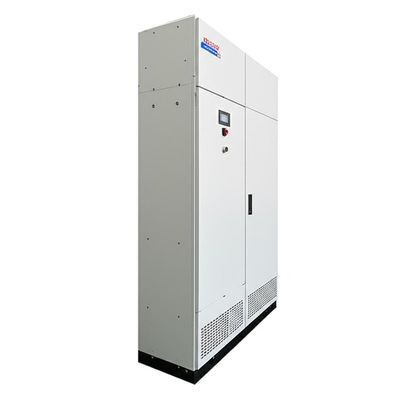

232kWh-325kWh Industrial And Commercial Energy Storage Integrated Cabinet
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
325kWh Industrial And Commercial Energy Storage
,232kWh Industrial And Commercial Energy Storage
,Commercial Energy Storage Integrated Cabinet
Product Description
232-325kWh Industrial And Commercial Energy Storage Integrated Cabinet
We offer a comprehensive range of energy storage cabinet products with customizable solutions to meet specific requirements. Contact us via email or WhatsApp for inquiries. Our team is committed to providing expert assistance.
Product Introduction
- Fully integrated pre-configured solution suitable for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services
- Off-grid microgrid systems ideal for areas with unstable electricity including villas, farms, islands, and oil extraction sites
- Primary functions include self-use, emergency backup power, oil engine management, and wind turbine management
- Optimized for industrial and commercial microgrid energy storage solutions with efficient performance for small and medium enterprises
- Capacity expansion available through parallel cabinet connections
Product System Diagram
| 01 Cooling air duct | 06 Fire Protection System |
| 02 Air conditioning system | 07 EMS Display Screen |
| 03 Battery PACK | 08 EMS host |
| 04 High voltage BMS | 09 PCS |
| 05 High Voltage Box | 10 Distribution System |
Product Specifications
Air-cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Capable of installing battery capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| Battery installation configuration | The interior space of the cabinet can be equipped with racks or non-standard, single 5-46.3kWh battery PACKs, and can be connected in series or parallel with multiple PACKs | |||||||
| External dimensions H * W * D | 900*680*680 | 1300*680*680 | 1600*760*760 | 2050*950*950 | 2500*950*950 | 2100*1050*1050 | 2500*1850*1150 | 2100*1650*1050 |
| Internal dimensions H * W * D | 750*600*600 | 1100*600*600 | 1400*700*700 | 1800*800*800 | 2300*800*800 | 1950*940*940 | 2300*1700*1000 | 1950*1540*940 |
| Cabinet material | Steel plate/stainless steel/galvanized sheet | |||||||
| Open mode | Front opening door/front and rear opening door | |||||||
| Heat dissipation method | Air cooled air conditioner/air cooled fan (optional) | |||||||
| Fire Protection System | Hot melt adhesive/heptafluoropropane/perfluorohexane (optional) | |||||||
| Power distribution unit | AC input/output power distribution, DC input/output power distribution, electric meter, emergency stop switch indicator light (optional) | |||||||
| PCS | 3-5kW | 8-10 kW | 8-10 kW | 10-20 kW | 20-30 kW | 50 kW | 50 kW | 100 kW |
| Ambient Temperature | -40°C to 75°C | |||||||
| Product temperature rise | Can provide actual product temperature rise test report | |||||||
| protection grade | IP20/IP55/IP66 | |||||||
| system certification | IS09001,IS014001,IS045001 | |||||||
| Branding | HUAHUI | |||||||
Liquid-cooled Energy Storage Cabinets
| PRODUCT MODEL | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Capable of installing battery capacity | 325kWh | 232kWh | 232kWh |
| Battery installation configuration | The interior space of the cabinet can accommodate 5-7 46.3kWh liquid cooled battery packs | ||
| External dimensions H * W * D | 2265*1330*1330 | 2265*1330*1330 | 2265*960*1330 |
| Internal dimensions H * W * D | 2100*1240*1240 | 2100*1240*1240 | 2100*890*1240 |
| Cabinet material | Steel plate/stainless steel/galvanized sheet | ||
| Open mode | Front opening door/front and rear opening door | ||
| Heat dissipation method | Air cooled air conditioner/air cooled fan (optional) | ||
| Fire Protection System | Hot melt adhesive/heptafluoropropane/perfluorohexane (optional) | ||
| Power distribution unit | AC input/output power distribution, DC input/output power distribution, electric meter, emergency stop switch indicator light (optional) | ||
| PCS | 100kW | ||
| Ambient Temperature | -40°C to 65°C | ||
| Product temperature rise | Can provide actual product temperature rise test report | ||
| protection grade | IP20/IP55/IP66 | ||
| system certification | IS09001,IS014001,IS045001 | ||
| Branding | Huahui | ||
Detailed Product Parameters
325kWh Liquid-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-231313-01 |
| Product size | H*W*D 2300*1350*1350 |
| Product Capacity | 325kwh |
| Battery configuration | 7 46.4kWh liquid cooled PACKs |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Liquid cooled air conditioner |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 100kW liquid cooling (optional) |
232kWh Liquid-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221212-01 |
| Product size | H*W*D 2200*1220*1220 |
| Product Capacity | 232kwh |
| Battery configuration | 5 46.4kWh liquid cooled PACKs |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Liquid cooled air conditioner |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 100kW liquid cooling (optional) |
400-430kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-223112-01 |
| Product size | 400kWh,H*W*D 2200*3100*1200 430kWh,H*W*D 2350*3200*1000 |
| Product Capacity | 400-430kWh |
| Battery configuration | 28-30 pieces of 48V280AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 200kw (optional) |
200-215kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221511-01 |
| Product size | 200kWh,H*W*D 2200*1500*1100 215kWh.H*W*D 2360*1660*1100 |
| Product Capacity | 200-215kWh |
| Battery configuration | 14-15 pieces of 48V280AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 100kw (optional) |
100kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221010-01 |
| Product size | H*W*D 2200*1000*1000 |
| Product Capacity | 100kWh |
| Battery configuration | 7 pieces of 48V280AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 50kw (optional) |
55kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-259191-01 |
| Product size | H*W*D 2500*910*910 |
| Product Capacity | 55kWh |
| Battery configuration | 11 (4U) 48V100AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Heptafluoropropane/Perfluorohexane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 20-30kw (optional) |
45kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-219191-01 |
| Product size | H*W*D 2100*910*910 |
| Product Capacity | 45kWh |
| Battery configuration | 9 (4U) 48V100AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Hot melt adhesive/heptafluoropropane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 10-20kw (optional) |
30-35kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-167676-01 |
| Product size | H*W*D 1650*760*760 |
| Product Capacity | 30-35kWh |
| Battery configuration | 6-7 (4U) 48V100AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air conditioning |
| Fire Protection System | Hot melt adhesive/heptafluoropropane (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 8-10kw (optional) |
20-25kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-136666-01 |
| Product size | H*W*D 1350*660*660 |
| Product Capacity | 20-25kWh |
| Battery configuration | 4-5 (4U) 48V100AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air cooling/intelligent air conditioning |
| Fire Protection System | Hot melt adhesive (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 8-10kw (optional) |
10kWh Air-cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-136666-01 |
| Product size | H*W*D 1350*660*660 |
| Product Capacity | 10-15kWh |
| Battery configuration | 2-3 (4U) 48V100AH |
| Cabinet material | Steel plate/stainless steel |
| protection grade | IP55/IP66 |
| Heat dissipation method | Intelligent air cooling/intelligent air conditioning |
| Fire Protection System | Hot melt adhesive (optional) |
| Distribution parameters | AC/DC (optional) |
| PCS parameters | 3-5kw (optional) |
Main Features
- Security: Software+hardware+electrical multi-level protection with independent cabinets for electrical and fire safety isolation, preventing accident spread. DC conversion to AC prevents DC arcing.
- Efficient: Cluster management eliminates parallel losses and improves energy storage revenue. PCS three-level topology achieves maximum efficiency of 99%.
- High integration: Combines battery+BMS+PCS+EMS+fire protection+temperature control in one unit.
- Easy to use: Features rapid deployment with decentralized deployment and centralized scheduling. Distributed design supports easy expansion through parallel cabinet connections on AC side. Fully modular for easy maintenance with cloud monitoring and mobile app support.
