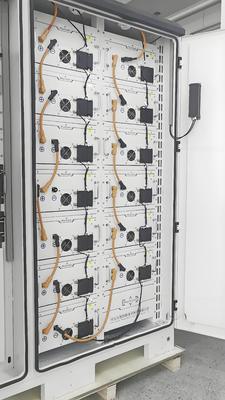

10kWh-215kWh Energy Storage Cabinet Air Conditioner Cabinet
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
215kWh Energy Storage Cabinet
,10kWh Energy Storage Cabinet
,215kWh Air Conditioner Cabinet
Product Description
10kWh-215kWh Energy Storage Cabinet Air Conditioner Cabinet
We offer a comprehensive range of 10-215kWh energy storage cabinet products with integrated air conditioning systems. Our team can tailor solutions and products to meet your specific requirements. Please contact us via email or WhatsApp for inquiries.
We are committed to providing professional assistance for your energy storage needs. May your work be productive and your life fulfilling!
Product Overview
Industrial & Commercial Energy Storage System
A fully integrated pre-configured solution suitable for:
- Photovoltaic energy systems
- Industrial and commercial applications
- Power grids and power plants
- Charging stations
- Public service facilities
Off-Grid Microgrid Systems
Ideal for areas with unstable electricity supply, including:
- Villas and residential properties
- Farms and agricultural operations
- Islands and remote locations
- Oil extraction sites
- Other areas without reliable grid access
Primary Functions
- Self-consumption optimization
- Emergency backup power
- Generator management
- Wind turbine integration
System Components
01 Cooling Air Duct
06 Fire Protection System
02 Air Conditioning System
07 EMS Display Screen
03 Battery PACK
08 EMS Host
04 High Voltage BMS
09 PCS
05 High Voltage Box
10 Distribution System
Air-Cooled Energy Storage Cabinet Specifications
| PRODUCT MODEL | HH-906868 | HH-136868 | HH-167676 | HH-209595 | HH-259595 | HH-211111 | HH-251919 | HH-211711 |
|---|---|---|---|---|---|---|---|---|
| Battery Capacity | 10-15kWh | 20-25kWh | 30-35kWh | 45kWh | 55kWh | 100kWh | 100kWh | 200kWh |
| External Dimensions H×W×D | 900×680×680 | 1300×680×680 | 1600×760×760 | 2050×950×950 | 2500×950×950 | 2100×1050×1050 | 2500×1850×1150 | 2100×1650×1050 |
| Internal Dimensions H×W×D | 750×600×600 | 1100×600×600 | 1400×700×700 | 1800×800×800 | 2300×800×800 | 1950×940×940 | 2300×1700×1000 | 1950×1540×940 |
| PCS Power | 3-5kW | 8-10kW | 8-10kW | 10-20kW | 20-30kW | 50kW | 50kW | 100kW |
Battery Configuration: Interior cabinet space can accommodate racks or non-standard arrangements with single 5-46.3kWh battery PACKs, supporting series or parallel connection of multiple PACKs.
Standard Features:
- Cabinet Material: Steel plate/stainless steel/galvanized sheet
- Opening Mode: Front opening door/front and rear opening door
- Cooling Method: Air-cooled air conditioner/air-cooled fan (optional)
- Fire Protection: Hot melt adhesive/heptafluoropropane/perfluorohexane (optional)
- Power Distribution: AC input/output power distribution, DC input/output power distribution, electric meter, emergency stop switch indicator light (optional)
- Ambient Temperature: -40°C to 75°C
- Protection Grade: IP20/IP55/IP66
- System Certification: ISO9001, ISO14001, ISO45001
- Brand: HUAHUI
Liquid-Cooled Energy Storage Cabinet Specifications
| PRODUCT MODEL | HH-221313-A | HH-221313-B | HH-229613 |
|---|---|---|---|
| Battery Capacity | 325kWh | 232kWh | 232kWh |
| External Dimensions H×W×D | 2265×1330×1330 | 2265×1330×1330 | 2265×960×1330 |
| Internal Dimensions H×W×D | 2100×1240×1240 | 2100×1240×1240 | 2100×890×1240 |
| PCS Power | 100kW | 100kW | 100kW |
Battery Configuration: Interior cabinet space accommodates 5-7 46.3kWh liquid-cooled battery packs.
Standard Features:
- Cabinet Material: Steel plate/stainless steel/galvanized sheet
- Opening Mode: Front opening door/front and rear opening door
- Cooling Method: Air-cooled air conditioner/air-cooled fan (optional)
- Fire Protection: Hot melt adhesive/heptafluoropropane/perfluorohexane (optional)
- Power Distribution: AC input/output power distribution, DC input/output power distribution, electric meter, emergency stop switch indicator light (optional)
- Ambient Temperature: -40°C to 65°C
- Protection Grade: IP20/IP55/IP66
- System Certification: ISO9001, ISO14001, ISO45001
- Brand: Huahui
Detailed Product Specifications
325kWh Liquid-Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-231313-01 |
| Product Size | H×W×D 2300×1350×1350 |
| Product Capacity | 325kWh |
| Battery Configuration | 7 × 46.4kWh liquid-cooled PACKs |
| Cabinet Material | Steel plate/stainless steel |
| Protection Grade | IP55/IP66 |
| Cooling Method | Liquid-cooled air conditioner |
232kWh Liquid-Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221212-01 |
| Product Size | H×W×D 2200×1220×1220 |
| Product Capacity | 232kWh |
| Battery Configuration | 5 × 46.4kWh liquid-cooled PACKs |
| Cabinet Material | Steel plate/stainless steel |
| Protection Grade | IP55/IP66 |
400-430kWh Air-Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-223112-01 |
| Product Size | 400kWh: 2200×3100×1200 430kWh: 2350×3200×1000 |
| Product Capacity | 400-430kWh |
| Battery Configuration | 28-30 pieces of 48V280AH |
200-215kWh Air-Cooled Energy Storage Cabinet
| PRODUCT MODEL | HH-221511-01 |
| Product Size | 200kWh: 2200×1500×1100 215kWh: 2360×1660×1100 |
| Product Capacity | 200-215kWh |
| Battery Configuration | 14-15 pieces of 48V280AH |
Key Product Features
Security
- Multi-level protection: software + hardware + electrical systems
- Independent cabinets provide electrical and fire safety isolation
- DC to AC conversion prevents DC arcing hazards
Efficiency
- Cluster management eliminates parallel losses and improves energy storage revenue
- PCS three-level topology with maximum efficiency of 99%
High Integration
- Fully integrated system: battery + BMS + PCS + EMS + fire protection + temperature control
Ease of Use
- Rapid deployment capabilities
- Decentralized deployment with centralized scheduling
- Distributed architecture supports easy expansion
- Fully modular design for simplified maintenance
- Cloud monitoring and mobile app support
