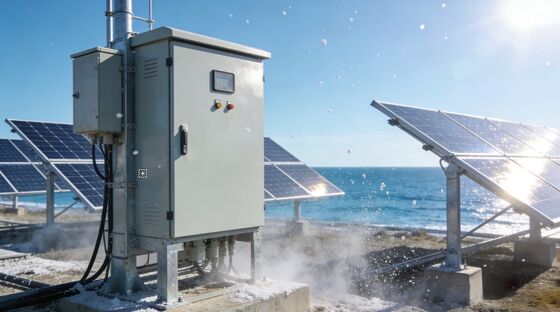

IP55 Outdoor Waterproof Electrical Cabinet 2000W Heat Dissipation
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Highlight:
IP55 Outdoor Waterproof Electrical Cabinet
,Outdoor Waterproof Electrical Cabinet
Product Description
IP55 Outdoor Waterproof Electrical Cabinet with 2000W Heat Dissipation
The T-series cabinet is a fully enclosed, intelligent, and flexible outdoor power cabinet featuring an innovative "Lego brick" open frame structure. This design enables easy spatial expansion and enhanced heat dissipation capabilities, allowing customers to efficiently expand and upgrade existing network equipment while maximizing site value.
Product Overview
Our T-series outdoor cabinets provide a comprehensive solution for network infrastructure with models including T100, T300, and T500. These cabinets support various installation methods including wall-mounted, pole-mounted, seated, and elevated installations, making them suitable for small, medium, and large copper wire/OLT/wavelength division equipment applications.
Key Advantages
- Smooth Evolution: Modular framework structure enables quick on-site cabinet combinations for continuous space expansion
- Safe & Reliable: IP55 sealed rating with 60KA lightning protection ensures outdoor safety and reduces maintenance costs
- Green Energy Efficiency: Advanced heat exchange natural cooling design reduces energy consumption
- Ultra-Quiet Operation: Fully enclosed design provides excellent sound insulation, averaging 10dBA lower than industry standards
- One-Stop Installation: Pre-integrated with host equipment, power distribution, batteries, and cooling modules
- Intelligent Management: Remote monitoring of environmental conditions, access control, and equipment status
Product Features
- Easy Spatial Expansion: Flexible framework supports continuous cabinet space expansion
- Upgradable Heat Dissipation: Replaceable door-mounted heat exchangers support evolving equipment needs
- Business Evolution Ready: Compatible with 21/19-inch equipment and flexible wiring configurations
- Fully Intelligent Management: Visual monitoring, remote access control, and battery health detection
- Flexible Power Access: Supports remote power, AC power, and diesel engine interfaces
- Optimized Site Selection: Front-opening design reduces maintenance area by 45%
- High Reliability: IP55 protection and maximum lightning protection ensure outdoor durability
Technical Specifications
| Parameter | Specification |
|---|---|
| Cabinet Dimensions | 1350mm x 480mm x 1600mm (W x D x H) |
| Battery Capacity | Two sets of 100Ah batteries (expandable to 400Ah via parallel connection) |
| Maximum Weight (without battery) | 250kg |
| Maximum Weight (with battery) | 518kg |
| Operating Environment | -45℃ to +45℃ (1120W/m² solar radiation) |
| Noise Standards | ETS 300753 Class 4.1E, city level |
| Heat Dissipation Form | Heat exchanger |
| Maximum Heat Dissipation Capacity | 2000W |
Service Configuration
| Configuration | User Capacity |
|---|---|
| 2 DC MA5600T | Pure fiber: 16 x 16 PON Pure copper: 16 x 64 POTS/VDSL2/ADSL2+ Mixed copper-fiber: Any proportion ratio |
| 2 DC HABDs + 1 DC HABF | Pure fiber: 16 x 16 PON Pure copper: 16 x 64 POTS/VDSL2/ADSL2+ Mixed copper-fiber: Any proportion ratio |
Custom Solutions Available
We offer a comprehensive range of outdoor cabinet products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries. We are committed to providing exceptional support and service.
We offer a comprehensive range of outdoor cabinet products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries. We are committed to providing exceptional support and service.
