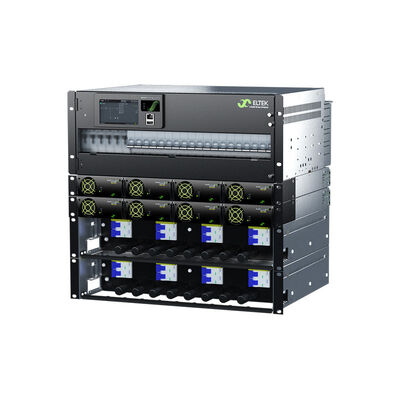

Eltek Flatpack2 4U Solar Autonomous Power Core (300A/500A)

The Eltek Flatpack2 4U Solar Autonomous Power Core is an all-in-one renewable energy power system tailored for off-grid and solar hybrid scenarios. Built on the mature Flatpack2 platform, this 4U rack-mounted unit integrates solar chargers, rectifier modules, battery distribution, load distribution and intelligent monitoring into one chassis. It is available in 300A and 500A two current versions, with a maximum PV power up to 24kW. Adopting advanced MPPT maximum power point tracking technology, it achieves nearly 100% solar panel utilization and high energy conversion efficiency. The system is matched with Flatpack2 48/3200 HE solar modules and Smartpack2 series controllers, all supporting hot swap for convenient maintenance. It is pre-installed with abundant battery and load breaker positions, as well as standard LVBD/LVBP protection functions, and reserves DC SPD installation space for surge protection. With 85-420VDC wide PV input and galvanic isolation design, it features strong anti-interference and environmental adaptability. This flexible and expandable power core is widely applied in off-grid telecom base stations, rural electrification, remote monitoring stations and other solar power projects.

Brand: ELTEK
Full Model: Flatpack2 Solar Autonomous Power Core
Part Numbers: CTOA0407S.4xxx (300A) / CTOA0810S.4xxx (500A)
Current Spec: 300A / 500A Dual Options
Unit Price: $799.00 / set (≥2 sets)
Minimum Order Quantity: 2 sets
Place of Origin: Guangdong, China
Packaging: Carton / Wooden Frame
Supply Ability: Bulk orders supported
Warranty: 12 Months
Mounting Standard: 19-inch 4U Rack
Loading Port: Shenzhen

• Dual Current Options: Two specifications of 300A and 500A to meet different load and capacity requirements.

• High PV Capacity: Maximum photovoltaic power reaches 24kW, supporting multi-group solar panel array access.

• Advanced MPPT Technology: Digital MPPT algorithm tracks maximum power in real time, maximizing solar energy utilization.

• Hot Plug Design: Solar chargers and control modules support hot swap, realizing non-stop maintenance.

• Complete Distribution Layout: 300A version has 6 single-pole battery breakers; 500A version has 8 single-pole battery breakers, and both are equipped with up to 18 load breaker positions.

• Multi-Protection Configuration: Built-in LVBD & LVBP protection, optional DC SPD surge protector to resist lightning and voltage surges.

• Wide DC Input: PV operating voltage 85-420VDC, MPPT range 100-380VDC, wide voltage adaptation for various solar strings.

• Intelligent Monitoring: Equipped with Smartpack2 Touch / Smartpack2 Basic controller, with Ethernet port for remote monitoring and parameter management.

• Galvanic Isolation: Isolation design between PV side and load side enhances system safety and anti-surge capability.

• Standard Rack Structure: 19-inch 4U cabinet, easy to install and compatible with most standard racks.

• Wireless Telecom: Off-grid 4G/5G base stations, cell sites, distributed antenna systems, microwave communication equipment

• Rural Electrification: Remote villages, mountainous areas and other off-grid solar power supply projects

• Remote Monitoring: Unattended industrial monitoring, environmental monitoring, pipeline monitoring stations

• Marine & Offshore: Offshore platforms, island equipment solar hybrid power systems

• Renewable Energy: Independent photovoltaic power stations, solar-battery hybrid power systems

1. High Energy Utilization: MPPT technology cooperates with high-efficiency solar modules to greatly improve power generation efficiency.

2. Strong Expandability: Abundant breaker positions and modular design support later capacity and function expansion.

3. Easy O&M: Full hot plug structure reduces maintenance difficulty and avoids system shutdown.

4. High Safety: Galvanic isolation + multiple protection functions effectively prevent faults such as over-discharge and surge.

5. Wide Adaptation: Ultra-wide PV input range is compatible with various solar panel combinations.

6. Integrated Design: One machine integrates charging, power distribution and monitoring, simplifying system wiring and layout.

7. Remote Management: Ethernet remote monitoring realizes unattended operation for remote sites.

8. Global Compliance: Multiple international certifications, suitable for projects in various regions.

Shenzhen Xingda Shidai Technology Co., Ltd. is a professional supplier focusing on communication power, solar energy systems and data center supporting equipment. Founded in 2021, the company is located in Fuhai Subdistrict, Bao’an District, Shenzhen, with headquarters in Fangshan, Beijing and cooperative outlets nationwide. We have long-term cooperation with ELTEK, Vertiv, Huawei, ZTE and other well-known brands. Our product line covers solar power cores, rectifier modules, integrated power cabinets, UPS and storage batteries. All products undergo strict aging tests and load tests before delivery. We support bulk orders and customized services, with sufficient inventory and fast delivery. Our products are exported to Southeast Asia, Africa, the Middle East, Europe and other regions, winning long-term trust of customers.

1. Q: What current versions are available for this power core?

   A: It has two options: 300A and 500A for selection.

2. Q: What is the maximum PV power it can support?

   A: The maximum supported photovoltaic power is 24kW.

3. Q: Does it adopt MPPT solar tracking technology?

   A: Yes, it is equipped with professional MPPT algorithm to improve solar panel utilization.

4. Q: How many breakers are configured?

   A: The 300A version has 6 battery breakers, the 500A version has 8 battery breakers, and both have up to 18 load breaker positions.

5. Q: Does it support remote monitoring?

   A: Yes, it is equipped with Smartpack2 controller and Ethernet port for remote monitoring and fault alarm.

6. Q: What is the minimum order quantity?

   A: The minimum order quantity is 2 sets.

7. Q: What protection functions does it have?

   A: Standard LVBD and LVBP protection, and DC SPD surge protector can be installed optionally.
