Enclosed Plug In Busway Busbar General Electric Busway Box IP66
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Electrical Busduct
Type:
Busduct System
Feature:
Enclosed
Protection Grade:
IP54, IP66
Advantage:
Safety, Aesthetics
Application:
Large Factories, Mining Enterprises, Substations
Highlight:
Plug In Busway Busbar
,General Electric Busway Box
,Electric Busway Box IP66
Product Description

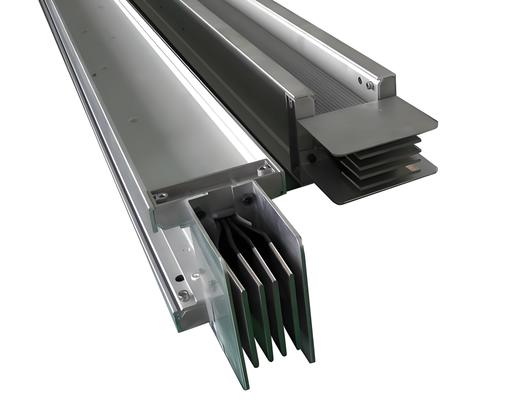

Enclosed Plug In Busway Busbar General Electric Busway Box IP66
Electrical Busduct plug-in box, enclosed accessory adapter box, bus socket protection box, shared box, bus duct factory distribution solution.
We offer a wide range of busbar trunking products and can tailor solutions and products to meet your specific needs. You are welcome to inquire via email or WhatsApp, and we will be happy to assist you.
Dense Bus Duct Selection Parameters
| Current Level | XLC /4P W(mm) | XLC /4P H(mm) | XLC /5P W(mm) | XLC /5P H(mm) |
|---|---|---|---|---|
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
XLC Type Bus Duct Technical Parameters
| Execution Standards | IEC60439.1-2000 IEC60439.2-2000 GB/T 7251.6-2015 |
| Ambient Temperature | -5/+40°C (24-hour average temperature not exceeding 35°C) |
| Altitude | Not exceeding 2000M |
| Protection Grade | IP54, IP66 |
| Unit Length (M) | Choose between 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated Operational Voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated Current (A) | 400-5000 |
| Temperature Rise (K) | ≤70 |
| Insulation Resistance (MΩ) | ≥20 |
| Electrical Clearance (mm) | ≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit) |
| Creepage (mm) | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
| Protection Circuit Effectiveness (Ω) | <0.02 |
| Dielectric Properties | 50Hz, 3750v/min, no breakdown, flashover |
| Installation Method | Vertical or horizontal |
| Number of Plug-in Interfaces | Minimum 0.5/m pieces (double-sided plug can be provided) |
Key Features
- Safety, aesthetics, and reliability advantages
- Strong overload capacity
- Low temperature rise
- Excellent load capacity and dynamic/thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for high safety performance
- Good short-circuit resistance and low energy consumption
- Convenient and quick maintenance, disassembly, and assembly
Application Fields
Power supply systems of large factories, mining enterprises, large substations, captive power plants, from generators to step-up transformers, and from transformers to high-voltage distribution rooms.
Casted Busway Features
- Large capacity range from 100A to 4000A
- High protection level up to IP68 (100% waterproof and dustproof)
- Epoxy resin casting structure prevents metal oxidation and corrosion
- Low line voltage drop with high instantaneous current withstand
- High structural strength, good mechanical properties, maintenance-free
- Compact structure, small size, strong dynamic and thermal stability
- Suitable for harsh indoor/outdoor environments, not limited by altitude
- Capable of continuous operation under overload conditions
Casted Busway Applications
Power plants, substations, shipbuilding, paper making, ports, basements, petrochemical industries, steel smelting, coal mines, and other harsh environments.
Fire-Resistant Busway Features
- 180-minute fire-resistant duration
- Compact and dense structure, small volume
- Fire-resistant coating and baffles prevent flame/gas entry
- Low impedance with excellent dynamic and thermal stability
- Easy and quick maintenance, disassembly and assembly
- Fireproof materials withstand temperatures up to 1000°C
- Excellent electrical conductivity
- Suitable for various fire risk areas, ensuring continuous power supply
Fire-Resistant Busway Applications
Teaching buildings, high-rise hospitals, high-rise hotels, financial buildings, office buildings, urban rail transit, government offices, large libraries, cotton spinning and mining enterprises.
Advanced Structural Features
- Fully meets load demands
- Ultra-thin, compact design with industry-leading copper bar specifications
- 360-degree comprehensive protection against dust, corrosion, moisture, water, rust, and impact
- "Sandwich" structure with compact integration of shell, insulation, and conductor
- Unique "亞" shape structure with excellent load-bearing capacity
- Sawtooth shape design with oversized heat dissipation surface
- Critical structural design integrating consumables, strength, and heat dissipation
- Dual neutral system for safer electricity usage
- Non-magnetic shell design eliminates magnetic eddy current interference
Comprehensive Application Coverage
Shopping malls, schools, industrial plants, rail transit, commercial complexes, real estate developments, data centers, hospitals, and hotels.
