Customized 3150A Insulated Electrical Busduct Dense Enclosed Plug In Busbar Trunking
Products
Contact Us
|
Customized 3150A Insulated Electrical Busduct Dense Enclosed Plug In Busbar Trunking
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electrical Busduct
Type:
Busduct System
Feature:
Enclosed
Protection Grade:
IP54, IP66
Advantage:
Safety, Aesthetics
Application:
Large Factories, Mining Enterprises, Substations
Highlight:
Customized 3150A Insulated Electrical Busduct
,3150A Plug In Busbar Trunking
,Dense Enclosed Plug In Busbar
Product Description

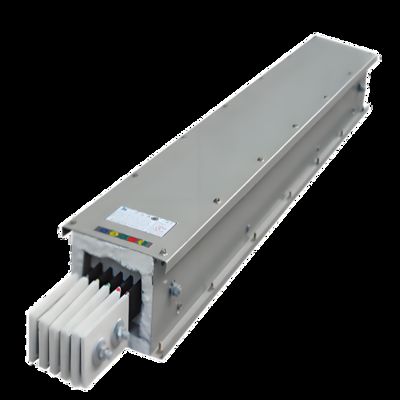

Customized 3150A Fire-Resistant Electrical Busduct
We offer a wide range of busbar trunking products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for customized assistance.
Selection Parameters and Technical Parameters of Dense Bus Duct
| Current level | XLC /4P W(mm) | XLC /4P H(mm) | XLC /5P W(mm) | XLC /5P H(mm) |
|---|---|---|---|---|
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
Technical Parameters of XLC Type Bus Duct
| Execution standards | IEC60439.1-2000 IEC60439.2-2000 GB/T 7251.6-2015 |
|---|---|
| Ambient temperature | -5/+40°C (24-hour average not exceeding 35°C) |
| Altitude | Not exceeding 2000M |
| Protection grade | IP54, IP66 |
| Unit Length (M) | 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated operational voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated insulation voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated current (A) | 400-5000 |
| Resistance (uΩ/m) | 88.9-6.7 |
| Reactance (uΩ/m) | 66.5-13 |
| Total Reactance (uΩ/m) | 289.7-69 |
| Voltage drop (mV/m) | 77.5-61.4 |
| Rated short-time withstand current (KA) | 30-80 |
| Rated peak withstand current (KA) | 63-176 |
| Temperature rise (K) | ≤70 |
| Insulation resistance (MΩ) | ≥20 |
| Electrical clearance (mm) | ≥10.0mm (with tapping)/≥14.0mm (without) |
| Creepage (mm) | ≥12.5mm (with tap)/≥16.0mm (without) |
| Protection circuit effectiveness (Ω) | <0.02 |
| Dielectric properties | 50Hz, 3750v/min, no breakdown/flashover |
| Installation method | Vertical or horizontal |
| Number of plug-in interfaces | Minimum 0.5/m pieces |
| Maximum fixed spacing (m) | 3-4 |
| Balanced load (kg/m) | 20-30 |
| Concentrated load (kg) | 90 |
Key Features
- Safety, aesthetics, and reliability
- Strong overload capacity
- Low temperature rise
- Excellent load capacity and dynamic/thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for high safety
- Excellent short-circuit resistance and low energy consumption
- Easy maintenance and quick assembly/disassembly
Field of Application
Large factories, mining enterprises, substations, captive power plants, generator to transformer connections, and high-voltage distribution systems.
Casted Busway Features
- Capacity range: 100A-4000A
- IP68 protection (100% waterproof/dustproof)
- Epoxy resin casting prevents oxidation/corrosion
- High structural strength and mechanical properties
- Compact design with excellent thermal stability
- Suitable for harsh indoor/outdoor environments
- Capable of continuous overload operation
Applications
Power plants, substations, shipbuilding, paper mills, ports, petrochemical plants, steel mills, and coal mines.
Fire-Resistant Features
- 180-minute fire resistance
- Compact structure with small footprint
- Fire-resistant paint and baffles prevent flame penetration
- Low impedance with excellent stability
- Withstands temperatures up to 1000°C
- Ideal for fire-risk areas requiring continuous power
Applications
Schools, hospitals, hotels, offices, government buildings, libraries, and textile/mining facilities.
Advanced Features
- Ultra-thin, compact design with industry-leading copper specifications
- 360° protection against dust, corrosion, moisture, and impact
- Sandwich structure for compact integration
- Unique sawtooth design for superior heat dissipation
- Dual neutral system for enhanced safety
- Non-magnetic shell eliminates eddy current interference
Applications
Commercial complexes, data centers, hospitals, hotels, shopping malls, schools, and industrial facilities.
