Plug In Electrical Busduct 800A-1250A Dense Enclosed Cable Busway
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Electrical Busduct
Type:
Busduct System
Feature:
Enclosed
Protection Grade:
IP54, IP66
Advantage:
Safety, Aesthetics
Application:
Large Factories, Mining Enterprises, Substations
Highlight:
Plug In Electrical Busduct 800A
,1250A Dense Enclosed Cable Busway
,800A Dense Enclosed Cable Busway
Product Description

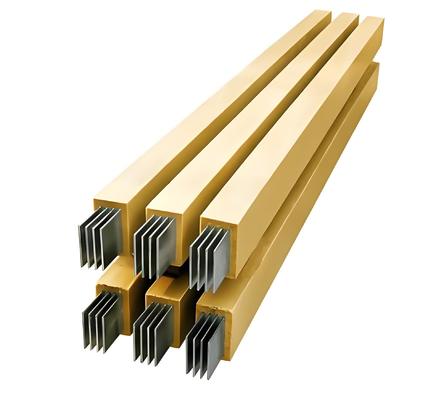

Plug In Electrical Busduct 800A-1250A Dense Enclosed Cable Busway
We supply plug-in electrical busduct dense enclosed bus duct cable wiring systems rated 800A-1250A. Our comprehensive range of busbar trunking products can be tailored to meet your specific project requirements.
Dense Bus Duct Selection Parameters
XLC Type Bus Duct Dimensions (Width × Height in mm)
| Current Level (A) | XLC /4P W×H | XLC /5P W×H |
|---|---|---|
| 400 | 128×98 | 128×98 |
| 500 | 128×108 | 128×108 |
| 630 | 128×123 | 128×123 |
| 800 | 128×138 | 128×138 |
| 1000 | 128×158 | 128×158 |
| 1250 | 128×183 | 128×183 |
| 1600 | 128×218 | 128×218 |
| 2000 | 128×268 | 128×268 |
| 2500 | 128×280 | 128×280 |
| 3200 | 128×400 | 128×400 |
| 4000 | 128×490 | 128×490 |
XLC Type Bus Duct Technical Parameters
| Parameter | Specification |
|---|---|
| Execution Standards | IEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015 |
| Ambient Temperature | -5°C to +40°C (24-hour average ≤35°C) |
| Altitude | ≤2000m |
| Protection Grade | IP54, IP66 |
| Unit Length | 1.6, 2.5, 3.2, 6m (0.5-6m range) |
| Rated Operational Voltage | 690V (with tap unit) / 1000V (without tap unit) |
| Rated Insulation Voltage (Ui) | 800V (with tap unit) / 1000V (without tap unit) |
| Frequency | 50-60 Hz |
| Temperature Rise | ≤70K |
| Insulation Resistance | ≥20 MΩ |
| Electrical Clearance | ≥10.0mm (with tapping) / ≥14.0mm (without tapping) |
| Creepage | ≥12.5mm (with tap cell) / ≥16.0mm (without tap cell) |
| Protection Circuit Effectiveness | <0.02 Ω |
| Dielectric Properties | 50Hz, 3750V/min, no breakdown or flashover |
| Installation Method | Vertical or horizontal |
| Plug-in Interfaces | Minimum 0.5/m (double-sided plug available) |
Electrical Performance Specifications
| Rated Current (A) | Resistance (μΩ/m) | Reactance (μΩ/m) | Total Reactance (μΩ/m) | Voltage Drop (mV/m) | Short-time Withstand (kA) | Peak Withstand (kA) |
|---|---|---|---|---|---|---|
| 400 | 88.9 | 66.5 | 289.7 | 77.5 | 30 | 63 |
| 630 | 71.1 | 62.2 | 289.7 | 81.0 | ||
| 800 | 56.4 | 39.1 | 184.2 | 77.3 | 50 | 105 |
| 1000 | 40.3 | 37.9 | 176.3 | 77.5 | ||
| 1250 | 33.2 | 46.6 | 221.6 | 76.4 | 80 | 176 |
| 1600 | 24.5 | 30.1 | 150.7 | 74.9 | ||
| 2000 | 19.5 | 7.4 | 130.7 | 73.3 | ||
| 2500 | 14.5 | 25.9 | 129.6 | 71.4 | ||
| 3150 | 11.3 | 25.3 | 120.9 | 69.7 | ||
| 4000 | 8.9 | 14.3 | 76.2 | 63.0 | ||
| 5000 | 6.7 | 13.0 | 69.0 | 61.4 |
Mechanical Specifications
| Current Range (A) | Maximum Fixed Spacing (m) | Balanced Load (kg/m) | Concentrated Load (kg) |
|---|---|---|---|
| 400-630 | 4 | 20 | 90 |
| 800-1250 | 3 | 25 | 90 |
| 1600-2000 | 3 | 30 | 90 |
Custom Solutions Available
We offer a comprehensive range of busbar trunking products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for technical consultation and pricing information. We're committed to ensuring your project success and operational efficiency.
