Waterproof Busduct Electrical 2500A-4000A Busbar Trunking Vertical Or Horizontal
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Electrical Busduct
Type:
Busduct System
Feature:
Enclosed
Protection Grade:
IP54, IP66
Advantage:
Safety, Aesthetics
Application:
Large Factories, Mining Enterprises, Substations
Highlight:
Waterproof Busduct Electrical 2500A
,4000A Busbar Trunking
,2500A Busbar Trunking
Product Description

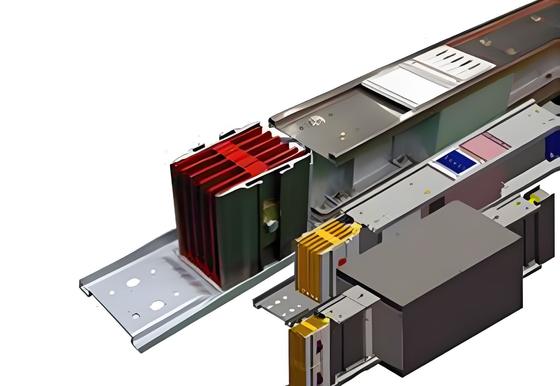

Waterproof Busduct Electrical 2500A-4000A Busbar Trunking
Available in both vertical and horizontal configurations for flexible installation.
We offer a comprehensive range of busbar trunking products and can customize solutions to meet your specific requirements. Contact us via email or WhatsApp for personalized assistance.
Dense Bus Duct Selection & Technical Parameters
Current Level Dimensions
| Current Level | XLC/4P W(mm) | XLC/4P H(mm) | XLC/5P W(mm) | XLC/5P H(mm) |
|---|---|---|---|---|
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
XLC Type Bus Duct Technical Specifications
| Parameter | Specification |
|---|---|
| Execution Standards | IEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015 |
| Ambient Temperature | -5°C to +40°C (24-hour average not exceeding 35°C) |
| Altitude | Not exceeding 2000m |
| Protection Grade | IP54, IP66 |
| Unit Length | 1.6, 2.5, 3.2, 6m (0.5-6m customizable) |
| Rated Operational Voltage | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency | 50-60Hz |
| Temperature Rise | ≤70K |
| Insulation Resistance | ≥20MΩ |
| Electrical Clearance | ≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit) |
| Creepage | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
| Protection Circuit Effectiveness | <0.02Ω |
| Dielectric Properties | 50Hz, 3750V/min, no breakdown or flashover |
| Installation Method | Vertical or horizontal |
| Number of Plug-in Interfaces | Minimum 0.5/m pieces (double-sided plug available) |
| Maximum Fixed Spacing | 4m, 4m, 3m, 3m |
| Balanced Load | 20, 20, 25, 30 kg/m |
| Concentrated Load | 90, 90, 90, 90 kg |
Key Features
- Enhanced safety, aesthetics, and reliability
- Strong overload capacity and low temperature rise
- Excellent load capacity with dynamic and thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for maximum safety performance
- Superior short-circuit resistance with low energy consumption
- Convenient and quick maintenance, disassembly, and assembly
Application Fields
Large factories, mining enterprises, substations, captive power plants, generator to transformer connections, and high-voltage distribution rooms.
Casted Busway Features
- Large capacity range from 100A to 4000A
- Maximum protection level IP68 (100% waterproof and dustproof)
- Epoxy resin casting structure prevents metal oxidation and corrosion
- Low line voltage drop with high instantaneous current withstand
- High structural strength with excellent mechanical properties and maintenance-free operation
- Compact design with strong dynamic and thermal stability
- Suitable for harsh indoor and outdoor environments with altitude independence
- Capable of continuous overload operation
Casted Busway Applications
Power plants, substations, shipbuilding, paper mills, ports, basements, petrochemical industries, steel smelting, coal mines, and other demanding environments.
Fire-Resistant Features
- 180-minute fire-resistant duration
- Compact, dense structure with small footprint
- Fire-resistant coated shell with flame barrier joints
- Low impedance busbar system with excellent stability
- Easy maintenance with quick disassembly and assembly
- Fireproof materials withstand temperatures up to 1000°C
- Superior electrical conductivity
- Ideal for fire risk areas requiring continuous power supply
Fire-Resistant Applications
Educational buildings, high-rise hospitals, hotels, financial centers, office buildings, urban rail transit, government facilities, libraries, and textile enterprises.
Advanced Structural Features
- Fully meets all load demands
- Ultra-thin, compact design with industry-leading copper bar specifications
- 360° comprehensive protection against dust, corrosion, moisture, water, rust, and impact
- "Sandwich" structure with integrated shell, insulation, and conductor
- "亞" shape structure with exceptional load-bearing capacity
- Unique sawtooth design for maximum heat dissipation surface
- Optimized structural design balancing materials, strength, and thermal performance
- Dual neutral system for enhanced electrical safety
- Non-magnetic shell design eliminates magnetic eddy current interference
Universal Applications
Shopping malls, schools, industrial plants, rail transit, commercial complexes, real estate developments, data centers, hospitals, and hotels across all industrial sectors.
