IP66 Plug In Busway 100A 250A 400A 630A Dense Electrical Busbar
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electrical Busduct
Type:
Busduct System
Feature:
Enclosed
Protection Grade:
IP54, IP66
Advantage:
Safety, Aesthetics
Application:
Large Factories, Mining Enterprises, Substations
Highlight:
IP66 Plug In Busway 100A
,630A Dense Electrical Busbar
,400A Dense Electrical Busbar
Product Description

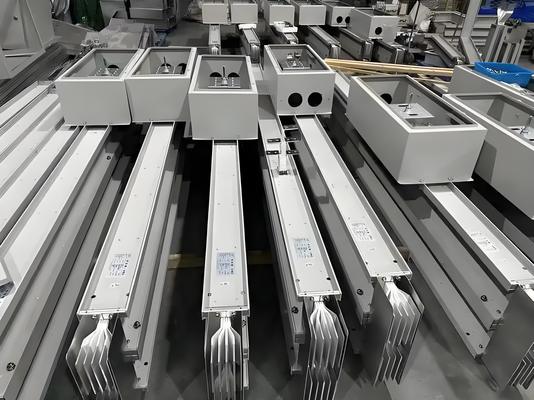

Electrical Busduct Slot Plug-in Box
We offer a wide range of busbar trunking products including dense busbar slot plug-in boxes with current ratings from 100A to 630A. Our solutions can be customized to meet your specific requirements.
Dense Bus Duct Selection Parameters
| Current level | XLC /4P | XLC /5P |
|---|---|---|
| 400 | 128 × 98 | 128 × 98 |
| 500 | 128 × 108 | 128 × 108 |
| 630 | 128 × 123 | 128 × 123 |
| 800 | 128 × 138 | 128 × 138 |
| 1000 | 128 × 158 | 128 × 158 |
| 1250 | 128 × 183 | 128 × 183 |
| 1600 | 128 × 218 | 128 × 218 |
| 2000 | 128 × 268 | 128 × 268 |
| 2500 | 128 × 280 | 128 × 280 |
| 3200 | 128 × 400 | 128 × 400 |
| 4000 | 128 × 490 | 128 × 490 |
XLC Type Bus Duct Technical Parameters
| Parameter | Specification |
|---|---|
| Execution standards | IEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015 |
| Ambient temperature | -5°C to +40°C (24-hour average ≤35°C) |
| Altitude | ≤2000M |
| Protection grade | IP54, IP66 |
| Unit Length (M) | 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated operational voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated insulation voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Electrical clearance (mm) | ≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit) |
| Creepage (mm) | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
Key Features
- Safety, aesthetics, and reliability
- Strong overload capacity
- Low temperature rise
- Excellent load capacity and dynamic/thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for enhanced safety
- Good short-circuit resistance with low energy consumption
- Easy maintenance, disassembly, and assembly
Applications
Large factories, mining enterprises, substations, captive power plants, generator to transformer connections, and high-voltage distribution rooms.
Casted Busway Features
- Capacity range: 100A to 4000A
- Protection level up to IP68 (100% waterproof/dustproof)
- Epoxy resin casting prevents oxidation and corrosion
- High structural strength with good mechanical properties
- Suitable for harsh indoor/outdoor environments
- Capable of continuous overload operation
Casted Busway Applications
Power plants, substations, shipbuilding, paper mills, ports, basements, petrochemical plants, steel smelting, and coal mines.
Fire-Resistant Features
- 180-minute fire-resistant duration
- Compact structure with small footprint
- Fire-resistant paint and baffles prevent flame penetration
- Low impedance with excellent stability
- Materials withstand up to 1000°C
- Suitable for fire risk areas requiring continuous power
Fire-Resistant Applications
Schools, hospitals, hotels, financial buildings, offices, urban transit, government buildings, libraries, and textile/mining facilities.
