3150A Fire Resistant Busduct System Air Insulated Bus Duct Customized
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Electric Bus Duct
Type:
Electrical Bus Duct System
Protection Grade:
IP54, IP66
Frequency (HZ):
50-60
Key Features:
Safety,Easy Maintenance
Application:
Substations, Captive Power Plants
Highlight:
3150A Fire Resistant Busduct System
,Air Insulated Bus Duct Customized
,3150A Air Insulated Bus Duct
Product Description

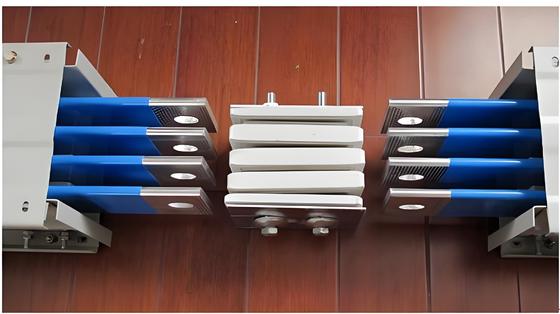

3150A Fire Resistant Busduct System - Air Insulated Bus Duct
Customized 3150A fire-resistant Busduct System dense enclosed plug-in insulated bus duct. We offer comprehensive busbar trunking solutions tailored to your specific requirements.
Dense Bus Duct Selection Parameters
| Current Level | XLC /4P W(mm) | XLC /4P H(mm) | XLC /5P W(mm) | XLC /5P H(mm) |
|---|---|---|---|---|
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
XLC Type Bus Duct Technical Parameters
| Execution Standards | IEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015 |
| Ambient Temperature | -5/+40°C (24-hour average ≤35°C) |
| Altitude | ≤2000M |
| Protection Grade | IP54, IP66 |
| Unit Length | 1.6, 2.5, 3.2, 6M (0.5-6) |
| Rated Operational Voltage | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency | 50-60 HZ |
| Temperature Rise | ≤70K |
| Insulation Resistance | ≥20 MΩ |
| Electrical Clearance | ≥10.0mm (with tapping)/≥14.0mm (without tapping) |
| Creepage | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
| Protection Circuit Effectiveness | <0.02 Ω |
| Dielectric Properties | 50Hz, 3750v/min, no breakdown, flashover |
| Installation Method | Vertical or horizontal |
Key Features
- Enhanced safety, aesthetics, and reliability with strong overload capacity
- Low temperature rise and excellent dynamic/thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell ensures high safety performance
- Superior short-circuit resistance with low energy consumption
- Convenient and quick maintenance, disassembly, and assembly
Application Fields
Power supply systems for large factories, mining enterprises, substations, captive power plants, and high-voltage distribution rooms.
Casted Busway Features
- Large capacity range from 100A to 4000A with IP68 protection
- Epoxy resin casting prevents metal oxidation and corrosion
- High structural strength, maintenance-free operation
- Compact design with strong dynamic and thermal stability
- Suitable for harsh indoor and outdoor environments
Fire-Resistant Busduct System
- 180-minute fire-resistant duration with compact, dense structure
- Fire-resistant paint coating and baffles prevent flame penetration
- Low impedance with excellent dynamic and thermal stability
- Fireproof materials withstand temperatures up to 1000°C
- Excellent electrical conductivity for continuous power supply
Advanced Structural Features
- Ultra-thin, compact design with industry-leading copper bar specifications
- 360° comprehensive protection against dust, corrosion, moisture, and impact
- "Sandwich" structure with compact integration of shell, insulation, and conductor
- Unique sawtooth design for enhanced heat dissipation
- Dual neutral system and non-magnetic shell design
Contact us via email or WhatsApp for customized busbar trunking solutions. We're committed to providing you with exceptional service and support.
