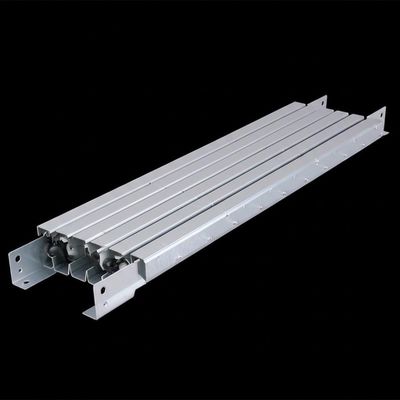

CCX Busduct System Dense Waterproof Enclosed Five Wire 3 Phase Busbar
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electric Bus Duct
Type:
Electrical Bus Duct System
Protection Grade:
IP54, IP66
Frequency (HZ):
50-60
Key Features:
Safety,Easy Maintenance
Application:
Substations, Captive Power Plants
Highlight:
CCX Busduct System Dense
,Busduct System Dense Waterproof
,Five Wire 3 Phase Busbar
Product Description
CCX Busduct System - Dense Waterproof Enclosed Three-Phase Five Wire System
We offer a comprehensive range of busbar trunking products with customizable solutions to meet specific requirements. Contact us via email or WhatsApp for personalized assistance.
Selection Parameters and Technical Specifications
| Current Level | XLC /4P | XLC /5P |
|---|---|---|
| 400 | 128 * 98 | 128 * 98 |
| 500 | 128 * 108 | 128 * 108 |
| 630 | 128 * 123 | 128 * 123 |
| 800 | 128 * 138 | 128 * 138 |
| 1000 | 128 * 158 | 128 * 158 |
| 1250 | 128 * 183 | 128 * 183 |
| 1600 | 128 * 218 | 128 * 218 |
| 2000 | 128 * 268 | 128 * 268 |
| 2500 | 128 * 280 | 128 * 280 |
| 3200 | 128 * 400 | 128 * 400 |
| 4000 | 128 * 490 | 128 * 490 |
Technical Parameters of XLC Type Bus Duct
| Parameter | Specification |
|---|---|
| Execution Standards | IEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015 |
| Ambient Temperature | -5°C to +40°C (24-hour average ≤35°C) |
| Altitude | ≤2000M |
| Protection Grade | IP54, IP66 |
| Unit Length (M) | 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated Operational Voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated Current (A) | 400-5000 |
| Resistance (uΩ/m) | 88.9-6.7 (varies by current rating) |
| Reactance (uΩ/m) | 66.5-13 (varies by current rating) |
| Total Reactance (uΩ/m) | 289.7-69 (varies by current rating) |
| Voltage Drop (mV/m) | 77.5-61.4 (varies by current rating) |
| Rated Short-time Withstand Current (KA) | 30-80 |
| Rated Peak Withstand Current (KA) | 63-176 |
| Temperature Rise (K) | ≤70 |
| Insulation Resistance (MΩ) | ≥20 |
| Electrical Clearance (mm) | ≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit) |
| Creepage (mm) | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
| Protection Circuit Effectiveness (Ω) | <0.02 |
| Dielectric Properties | 50Hz, 3750v/min, no breakdown, flashover |
| Installation Method | Vertical or horizontal |
| Number of Plug-in Interfaces | Minimum 0.5/m pieces (double-sided plug available) |
| Maximum Fixed Spacing (m) | 3-4 |
| Balanced Load (kg/m) | 20-30 |
| Concentrated Load (kg) | 90 |
Key Features
- Safety, aesthetics, and reliability combined in one system
- Exceptional overload capacity
- Low temperature rise operation
- Excellent load capacity with dynamic and thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for enhanced safety
- Superior short-circuit resistance with low energy consumption
- Easy maintenance with quick disassembly and assembly
Applications
Ideal for power supply systems in large factories, mining operations, substations, and captive power plants - from generators to transformers and high-voltage distribution rooms.
Casted Busway Features
- Wide capacity range from 100A to 4000A
- IP68 protection level (100% waterproof and dustproof)
- Epoxy resin casting prevents metal oxidation and corrosion
- Low line voltage drop with high instantaneous current withstand
- High structural strength with maintenance-free operation
- Compact design with excellent dynamic and thermal stability
- Suitable for harsh indoor/outdoor environments at any altitude
- Capable of continuous overload operation
Applications
Power plants, substations, shipbuilding, paper mills, ports, basements, petrochemical plants, steel mills, coal mines, and other challenging environments.
Fire-Resistant Features
- 180-minute fire-resistant duration
- Compact, dense structure with small footprint
- Fire-resistant paint coating with flame-retardant baffles at joints
- Low impedance with excellent dynamic and thermal stability
- Easy maintenance with quick disassembly/assembly
- Materials withstand temperatures up to 1000°C
- Superior electrical conductivity
- Ideal for fire risk areas requiring continuous power
Applications
Schools, hospitals, hotels, financial buildings, offices, government facilities, urban transit, libraries, textile plants, and mining operations.
Advanced Structural Features
- Meets all load requirements with industry-leading copper specifications
- Ultra-thin, compact design with 360° protection against environmental factors
- Sandwich structure combining shell, insulation, and conductor
- Unique "亞" shape design with exceptional load-bearing capacity
- Sawtooth heat dissipation surface reduces energy consumption
- Optimized structural design balancing materials, strength, and cooling
- Dual neutral system for enhanced safety
- Non-magnetic shell eliminates magnetic interference
Applications
Comprehensive coverage including shopping centers, schools, industrial plants, transit systems, commercial complexes, data centers, medical facilities, and hospitality venues.
