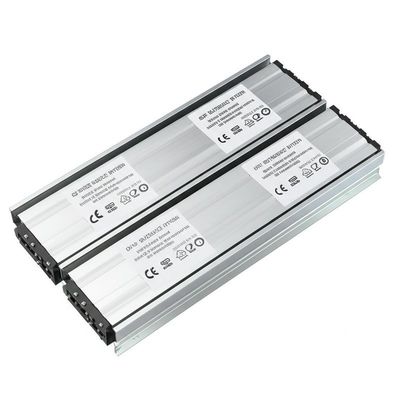

CE Bus Duct Trunking System IP54 And IP66 Bus Duct Electrical
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electric Bus Duct
Type:
Electrical Bus Duct System
Protection Grade:
IP54, IP66
Frequency (HZ):
50-60
Key Features:
Safety,Easy Maintenance
Application:
Substations, Captive Power Plants
Highlight:
CE Bus Duct Trunking System
,Bus Duct Trunking System IP54
,IP66 Bus Duct Electrical
Product Description
CE Certified Air Type Busduct System Trunking
Our CE certified busbar trunking systems are ready for immediate installation and can be customized to meet specific requirements. We offer comprehensive solutions tailored to your needs.
Contact us via email or WhatsApp for assistance. We're committed to providing you with a pleasant experience.
Dense Bus Duct Specifications
| Current Level | XLC /4P | XLC /5P | ||
|---|---|---|---|---|
| W(mm) | H(mm) | W(mm) | H(mm) | |
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
XLC Type Bus Duct Technical Parameters
| Execution Standards | IEC60439.1-2000 IEC60439.2-2000 GB/T 7251.6-2015 |
| Ambient Temperature | -5/+40°C (24-hour average ≤35°C) |
| Altitude | ≤2000M |
| Protection Grade | IP54, IP66 |
| Unit Length (M) | 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated Operational Voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated Current (A) | 400-5000 |
| Resistance (uΩ/m) | 88.9-6.7 |
| Reactance (uΩ/m) | 66.5-13 |
| Total Reactance (uΩ/m) | 289.7-69 |
| Voltage Drop (mV/m) | 77.5-61.4 |
| Rated Short-time Withstand Current (KA) | 30-80 |
| Rated Peak Withstand Current (KA) | 63-176 |
| Temperature Rise (K) | ≤70 |
| Insulation Resistance (MΩ) | ≥20 |
| Electrical Clearance (mm) | ≥10.0mm (with tapping)/≥14.0mm (without) |
| Creepage (mm) | ≥12.5mm (with tap)/≥16.0mm (without) |
| Protection Circuit Effectiveness (Ω) | <0.02 |
| Dielectric Properties | 50Hz, 3750v/min, no breakdown/flashover |
| Installation Method | Vertical or horizontal |
Key Features
- Safety, aesthetics, and reliability combined
- Strong overload capacity with low temperature rise
- Excellent load capacity and dynamic/thermal stability
- Eliminates uneven current distribution in spliced cables
- Double-grounded shell for enhanced safety
- Superior short-circuit resistance with low energy consumption
- Easy maintenance with quick disassembly/assembly
Applications
Ideal for power supply systems in large factories, mining operations, substations, and power plants - from generators to transformers and high-voltage distribution rooms.
Casted Busway Features
- Capacity range: 100A to 4000A
- IP68 protection (100% waterproof/dustproof)
- Epoxy resin casting prevents oxidation/corrosion
- High structural strength with maintenance-free operation
- Compact design with excellent stability
- Suitable for harsh indoor/outdoor environments
- Capable of continuous overload operation
Industrial Applications
Power plants, substations, shipbuilding, paper mills, ports, petrochemical plants, steel mills, mines, and other demanding environments.
Fire-Resistant Features
- 180-minute fire resistance rating
- Compact design with fire-resistant paint and baffles
- Low impedance with excellent stability
- Materials withstand up to 1000°C
- Ensures continuous power in fire-risk areas
Commercial Applications
Schools, hospitals, hotels, offices, government buildings, libraries, and urban transit systems.
Advanced Features
- Ultra-thin, compact design with industry-leading copper specifications
- 360° protection against environmental factors
- "Sandwich" structure for enhanced durability
- Unique sawtooth design for superior heat dissipation
- Dual neutral system for safer operation
- Non-magnetic shell eliminates interference
Versatile Applications
Suitable for malls, schools, industrial plants, transit systems, commercial complexes, data centers, hospitals, and hotels.
