1600A FSMC Waterproof Cast Resin Bus Duct Insulated Customized
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electric Bus Duct
Type:
Electrical Bus Duct System
Protection Grade:
IP54, IP66
Frequency (HZ):
50-60
Key Features:
Safety,Easy Maintenance
Application:
Substations, Captive Power Plants
Highlight:
Waterproof Cast Resin Bus Duct
,1600A Cast Resin Bus Duct
,FSMC Busduct System
Product Description

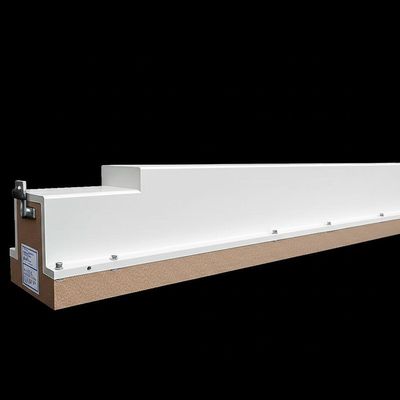

Manufacturer Customized 1600A FSMC Waterproof Casting Type Bus Duct Insulated Resin Busduct System
We offer a wide range of busbar trunking products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for customized assistance.
Selection Parameters and Technical Parameters of Dense Bus Duct
| Current Level | XLC /4P | XLC /5P |
|---|---|---|
| W(mm) | H(mm) | W(mm) | H(mm) | |
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
Technical Parameters of XLC Type Bus Duct
| Execution Standards | IEC60439.1-2000 IEC60439.2-2000 GB/T 7251.6-2015 |
|---|---|
| Ambient Temperature | -5/+40°C (24-hour average not exceeding 35°C) |
| Altitude | Not exceeding 2000M |
| Protection Grade | IP54, IP66 |
| Unit Length (M) | 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated Operational Voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated Insulation Voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated Current (A) | 400-5000 |
| Resistance (uΩ/m) | 88.9-6.7 |
| Reactance (uΩ/m) | 66.5-13 |
| Total Reactance (uΩ/m) | 289.7-69 |
| Voltage Drop (mV/m) | 77.5-61.4 |
| Rated Short-time Withstand Current (KA) | 30-80 |
| Rated Peak Withstand Current (KA) | 63-176 |
| Temperature Rise (K) | ≤70 |
| Insulation Resistance (MΩ) | ≥20 |
| Electrical Clearance (mm) | ≥10.0mm (with tapping)/≥14.0mm (without) |
| Creepage (mm) | ≥12.5mm (with tap)/≥16.0mm (without) |
| Protection Circuit Effectiveness (Ω) | <0.02 |
| Dielectric Properties | 50Hz, 3750v/min, no breakdown/flashover |
| Installation Method | Vertical or horizontal |
| Number of Plug-in Interfaces | Minimum 0.5/m pieces (double-sided available) |
| Maximum Fixed Spacing (m) | 4 | 4 | 3 | 3 |
| Balanced Load (kg/m) | 20 | 20 | 25 | 30 |
| Concentrated Load (kg) | 90 | 90 | 90 | 90 |
Key Features
- Safety, aesthetics, and reliability
- Strong overload capacity
- Low temperature rise
- Excellent load capacity with dynamic and thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for enhanced safety
- Excellent short-circuit resistance with low energy consumption
- Easy maintenance with quick disassembly/assembly
Field of Application
Power supply systems for large factories, mining enterprises, substations, captive power plants, generator to transformer connections, and high-voltage distribution rooms.
Casted Busway
- Capacity range: 100A to 4000A
- IP68 protection (100% waterproof/dustproof)
- Epoxy resin casting prevents metal oxidation/corrosion
- High structural strength with excellent mechanical properties
- Compact design with strong dynamic/thermal stability
- Suitable for harsh indoor/outdoor environments
- Capable of continuous overload operation
Field of Application
Power plants, substations, shipbuilding, paper mills, ports, basements, petrochemical, steel smelting, coal mines, and other demanding environments.
Fire-Resistant Features
- 180-minute fire-resistant duration
- Compact structure with small footprint
- Fire-resistant paint and baffles prevent flame penetration
- Low impedance with excellent dynamic/thermal stability
- Materials withstand up to 1000°C
- Ensures continuous power supply in fire-risk areas
Field of Application
Schools, hospitals, hotels, financial buildings, offices, urban rail transit, government buildings, libraries, and textile/mining enterprises.
Advanced Structural Features
- Ultra-thin, compact design with industry-leading copper specifications
- 360° protection against dust, corrosion, moisture, and impact
- "Sandwich" structure with perfect "亞" shape design
- Unique sawtooth design enhances heat dissipation
- Dual neutral system for safer operation
- Non-magnetic shell eliminates eddy current interference
Field of Application
Shopping malls, schools, industrial plants, rail transit, commercial complexes, real estate, data centers, hospitals, and hotels.
