10.24kWh Photovoltaic Storage Battery 51.2V 200AH Lithium Storage Batteries
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
10.24kWh Photovoltaic Storage Battery
,Photovoltaic Storage Battery 51.2V 200AH
,51.2V 200AH Lithium Storage Batteries
Product Description

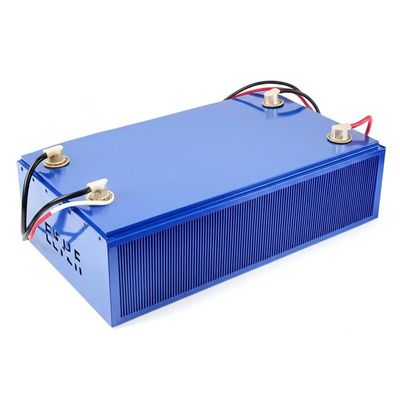

10.24kWh 51.2V 200AH Photovoltaic Storage Battery System
Our lithium iron phosphate battery pack offers reliable energy storage solutions for various applications. We provide customized solutions tailored to your specific requirements. Contact us via email or WhatsApp for inquiries.
Custom Energy Storage Battery Solutions
Product Attributes
| Attribute | Specification |
|---|---|
| Product Name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model Number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50/100/140A |
| Dimensions | 483*473*177mm / 483*585*236mm / 483*680*236mm |
| Applications | Communication base station/photovoltaic energy storage/backup power supply |
| Certifications | UN38.3/CE |
| Standard Capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg/87kg/112kg |
| Operating Temperature | 15-25℃/5%-95% RH |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design with A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic storage, and backup power supply
Technical Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Maximum Discharge Current | 100A | 200A | 280A |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C | ||
| Design Service Life | ≥10 years | ||
| Parallel Units Supported | Up to 15 units (recommended ≤5 units) | ||
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000 charge/discharge cycles. Available in various configurations with energy storage capacity ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, power grid, and estate applications.
Key Features
- Premium brand battery cells with 4000 charge/discharge cycles and customizable capacity
- Superior electrical performance with laser welding technology for excellent cell consistency
- High-quality LiFePO4 chemistry with over 6500 cycles and 10-year design lifespan
- Modular cabinet design for easy installation and flexible capacity expansion
Additional Specifications
| Parameter | Specification |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Capacity | 4.8KWh |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Maximum Continuous Charge Current | 100A |
| Dimensions | 480*480*134mm |
| BMS Support | 15 units parallel connection |
