150AH Lithium Battery Storage Photovoltaic UPS Backup Power Supply
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
150AH Lithium Battery Storage
,Lithium Battery Storage Photovoltaic
,Photovoltaic UPS Backup Power Supply
Product Description

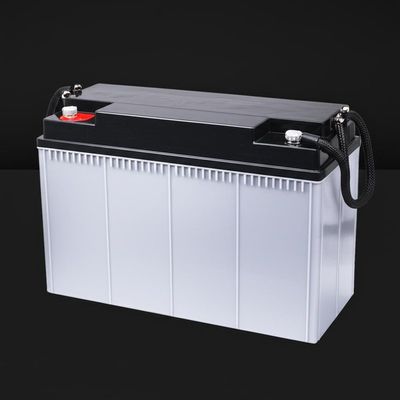

150AH Lithium Battery Storage Photovoltaic UPS Backup Power Supply
Advanced 150AH photovoltaic storage battery system designed for UPS backup power supply and electric vehicle applications. Features low internal resistance and minimal self-discharge rate for optimal performance.
We offer comprehensive battery pack solutions tailored to your specific requirements. Contact us via email or WhatsApp for detailed inquiries. Our team is dedicated to providing exceptional support and service.
Custom Energy Storage Battery Solutions
Product Specifications
| Product Name | Energy Storage Battery / Lithium Iron Phosphate Battery / Rack Mounted Battery |
|---|---|
| Origin | Guangdong, China |
| Type | Steel Shell Lithium Battery |
| Model Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applications | Communication Base Station / Photovoltaic Energy Storage / Backup Power Supply |
| Certifications | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold Rolled Steel Plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% Humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000+ charge cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Ideal for communication base stations, photovoltaic energy storage, and backup power supply systems
Detailed Product Parameters
| Model | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Technical Specifications
| Parameter | Specification |
|---|---|
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural Cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000+ charge-discharge cycles. Available in multiple configurations offering energy storage capacity from 8.96kWh to 61.44kWh. Suitable for industrial, commercial, office, grid, and estate applications.
Key Features
- Premium brand battery cells with 4000+ charge cycles and customizable capacity assembly
- Superior electrical performance utilizing laser welding technology for excellent cell consistency
- High-quality LiFePO4 battery chemistry with over 6500 cycle life and 10-year design lifespan
- Cabinet-style modular design for easy installation and flexible capacity expansion
Additional Specifications
| Project Category | Specification Parameters |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8kWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15 units parallel connection |
