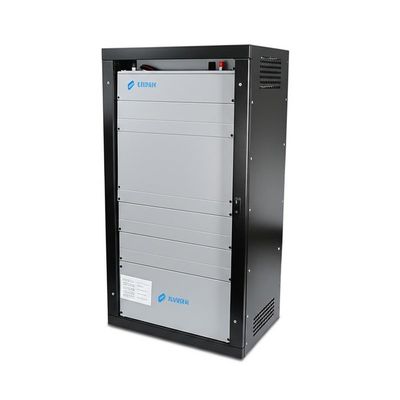

UN38.3 PV Battery Storage 48V100Ah 200Ah 280Ah Lithium Energy Storage
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
UN38.3 PV Battery Storage
,PV Battery Storage 48V100Ah
,200Ah 280Ah Lithium Energy Storage
Product Description
UN38.3 PV Battery Storage 48V100Ah 200Ah 280Ah Lithium Energy Storage
Lithium iron phosphate rack mounted battery 48V100Ah/200Ah/280Ah rack mounted Photovoltaic Storage Battery lithium battery power supply
We offer a wide range of battery pack products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing comprehensive assistance.
Custom Energy Storage Battery Solutions
Product Attributes
| Product Name | Energy storage battery / Lithium iron phosphate battery / Rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applications | Communication base station / Photovoltaic energy storage / Backup power supply |
| Certifications | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply
Technical Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 200Ah | 280Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 100A | 140A |
| Maximum Charging Current | 60A | 120A | 168A |
| Rated Discharge Current | 50A | 100A | 140A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 87kg | 112kg |
General Specifications
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge |
| Design Service Life | ≥10 years |
| Parallel Units Supported | Up to 15 units (recommended ≤5 units) |
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000+ charge/discharge cycles. Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, grid, and estate applications.
Key Features
- Utilizes premium brand battery cells with 4000+ charge/discharge cycles and customizable capacity assembly
- Excellent electrical performance with laser welding technology ensuring superior cell consistency and outstanding charge/discharge characteristics
- High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design for easy stacking, simple installation, and flexible capacity expansion
Additional Specifications
| Project Category | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8kWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Dimensions | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15 units parallel connection |
