48V 200Ah Lithium Iron Phosphate Battery Photovoltaic Stacked Lithium Battery
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
48V 200Ah Lithium Iron Phosphate Battery
,200Ah Lithium Iron Phosphate Battery Photovoltaic
,Photovoltaic Stacked Lithium Battery
Product Description

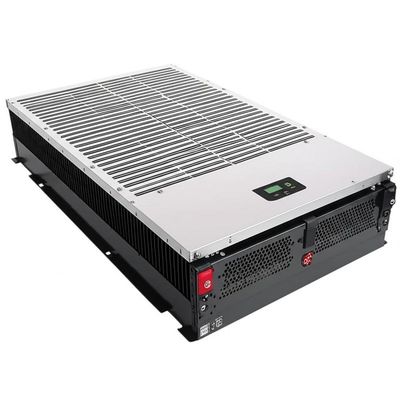

48V 200Ah Lithium Iron Phosphate Battery Photovoltaic Stacked Lithium Battery
48V200Ah rack mounted Photovoltaic Storage Battery, lithium iron phosphate high-capacity battery, supports stacked wall mounted lithium batteries
We offer a wide range of battery pack products and can tailor solutions and offerings to meet your specific needs. You are welcome to reach out via email or WhatsApp for inquiries. We are committed to providing you with the utmost assistance.
Product Attributes
| Product Name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
|---|---|
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/Item Number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50/100/140A |
| External Dimensions | 483*473*177mm / 483*585*236mm / 483*680*236mm |
| Applicable Types | Communication base station/photovoltaic energy storage/backup power supply |
| Product Certification | UN38.3/CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg/87kg/112kg |
| Charging Voltage | 51.2V |
| Operating Temperature | 15-25°C / 5%-95% humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design of A-grade battery cells
- 6000 cycles with a lifespan of up to 10 years
- RS485/RS232/CAN communication
- Suitable for communication base station, photovoltaic energy storage, and backup power supply applications
Technical Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Additional Specifications
| Parameter | Specification |
|---|---|
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 times @ 80% DOD, 0.5C10.5C, 25°C |
| Communication Method | CAN2.0/RS485/RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
Product Overview
Multiple standard cabinet battery packs equipped with A-grade lithium iron phosphate cells, featuring 4000 cycles of charging and discharging. Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh. Suitable for industrial, commercial, office, power grid, manor, and various other applications.
Key Features
- Battery pack utilizes well-known brand battery cells with 4000 charging/discharging cycles and customizable capacity assembly
- Excellent electrical performance with laser welding technology, ensuring superior battery cell consistency and outstanding charging/discharging performance
- High quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet style module design with stackable battery configuration, simple structure, easy installation, and flexible capacity expansion
Detailed Product Parameters
| Project Category | Specification Parameters |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8KWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480*480*134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15PCS parallel connection |
