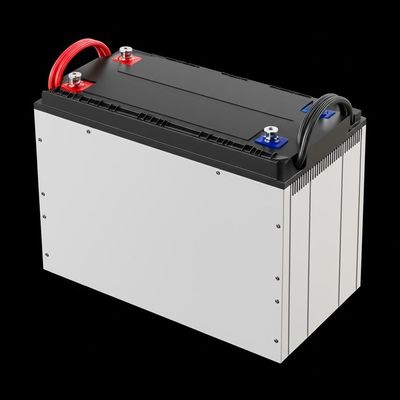

48V 50Ah Photovoltaic Storage Battery UN38.3 Lithium Iron Phosphate Battery
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
48V 50Ah Photovoltaic Storage Battery
,Photovoltaic Storage Battery UN38.3
,UN38.3 Lithium Iron Phosphate Battery
Product Description
48V 50Ah Photovoltaic Storage Battery
UN38.3 Certified Lithium Iron Phosphate Battery with excellent charging and discharging performance, long cycle life, and high safety standards. Directly supplied by the manufacturer.
We offer comprehensive battery pack solutions tailored to your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing exceptional support and service.
Product Specifications
| Attribute | Specification |
|---|---|
| Product Name | Energy Storage Battery / Lithium Iron Phosphate Battery / Rack Mounted Battery |
| Origin | Guangdong, China |
| Type | Steel Shell Lithium Battery |
| Model/Item Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applicable Types | Communication Base Station / Photovoltaic Energy Storage / Backup Power Supply |
| Product Certification | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold Rolled Steel Plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% Humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485 / RS232 / CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Detailed Product Parameters
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Additional Specifications
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural Cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Design Service Life | ≥10 years |
| Maximum Parallel Units Supported | Up to 15 units (recommended ≤5 units) |
