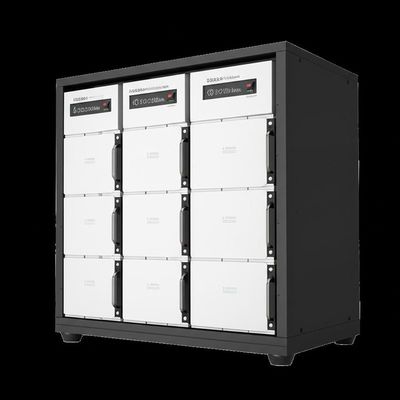

5.12kWh 10.24kWh 14.336kWh Lithium Iron Phosphate Battery Storage
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
14.336kWh Lithium Iron Phosphate Battery Storage
,5.12kWh Lithium Iron Phosphate Battery Storage
,10.24kWh lithium energy storage
Product Description
5.12kWh/10.24kWh/14.336kWh Photovoltaic Storage Battery System
Our lithium iron phosphate battery energy storage system offers reliable power solutions with capacities ranging from 5.12kWh to 14.336kWh. We provide customizable battery pack solutions tailored to your specific requirements. Contact us via email or WhatsApp for inquiries - we're committed to delivering optimal energy storage solutions.
Custom Energy Storage Battery Solutions
Product Specifications
| Attribute | Specification |
|---|---|
| Product Name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model Number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A/100A/140A |
| Dimensions | 483*473*177mm / 483*585*236mm / 483*680*236mm |
| Applications | Communication base stations, photovoltaic energy storage, backup power supply |
| Certifications | UN38.3, CE |
| Capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Weight | 48kg/87kg/112kg |
| Operating Temperature | 15-25°C (5%-95% humidity) |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply
Technical Parameters
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charge Current | 50A | 50A | 50A |
| Max Charge Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Max Discharge Current | 100A | 200A | 280A |
| Weight | 48kg | 48kg | 48kg |
| Operating Temperature/Humidity | 15-25°C/5%-95% | ||
| Cooling Method | Natural cooling | ||
| Protection Grade | IP20 | ||
| Cycle Life | ≥4000 cycles @80% DOD, 0.5C, 25°C | ||
| Communication | CAN2.0/RS485/RS232 | ||
| Design Life | ≥10 years |
||
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000 charge/discharge cycles. Available in various configurations with energy storage capacities ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, power grid, and estate applications.
Key Features
- Premium brand battery cells with 4000 charge/discharge cycles and customizable capacity
- Superior electrical performance with laser welding technology for excellent cell consistency
- High-quality LiFePO4 chemistry with over 6500 cycle life and 10-year design lifespan
- Modular cabinet design for easy installation and flexible capacity expansion
Additional Specifications
| Parameter | Specification |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Capacity | 4.8KWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charge Cut-off Voltage | 54.75V |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Dimensions | 480*480*134mm |
| Weight | 46kg |
| Charge Temperature | 0-55°C |
| Discharge Temperature | -20-65°C |
| Storage Temperature | -10-45°C |
| Parallel Connection Support | Up to 15 units (recommended ≤5 units) |
