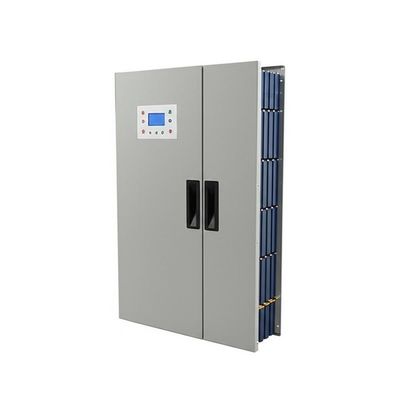

280Ah 200Ah 100Ah Pv Storage Battery Lithium Iron Phosphate Battery Pack
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
100Ah Pv Storage Battery
,200Ah Pv Storage Battery
,280Ah Lithium Iron Phosphate Battery Pack
Product Description
280Ah 200Ah 100Ah PV Storage Battery - Lithium Iron Phosphate Battery Pack
Our comprehensive range of photovoltaic storage battery systems includes 280Ah, 200Ah, and 100Ah lithium iron phosphate battery packs designed for reliable energy storage solutions. We offer customized battery series solutions tailored to meet your specific requirements.
Custom Solutions Available: Contact us via email or WhatsApp for personalized inquiries and technical support. We are committed to providing exceptional service and assistance.
Product Specifications
| Attribute | Specification |
|---|---|
| Product Name | Energy Storage Battery / Lithium Iron Phosphate Battery / Rack Mounted Battery |
| Origin | Guangdong, China |
| Type | Steel Shell Lithium Battery |
| Model Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applications | Communication Base Station / Photovoltaic Energy Storage / Backup Power Supply |
| Product Certification | UN38.3 / CE |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold Rolled Steel Plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% Humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Ideal for communication base stations, photovoltaic energy storage, and backup power supply applications
Detailed Model Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 200Ah | 280Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.34kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 87kg | 112kg |
General Technical Parameters
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural Cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, Overcurrent, Short Circuit, Overcharge, Overdischarge |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000+ charge-discharge cycles. Available in multiple configurations offering energy storage capacity from 8.96kWh to 61.44kWh. Suitable for industrial, commercial, office, grid, and estate applications.
Key Product Features
- Premium battery cells from renowned brands with 4000+ charge-discharge cycles and customizable capacity assembly
- Superior electrical performance utilizing laser welding technology for excellent cell consistency and outstanding charge-discharge characteristics
- High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design featuring stackable battery modules for simple installation and flexible capacity expansion
Additional Technical Specifications
| Parameter Category | Specification |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8kWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Dimensions | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -20~65℃ |
| Storage Temperature Range | -10~45℃ |
| BMS Parallel Support | 15 units parallel connection |
