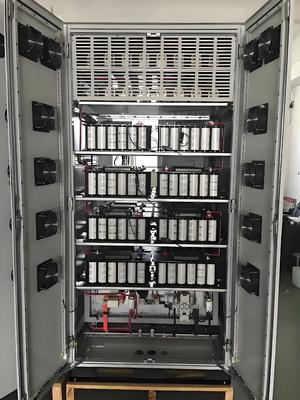

Air Cooled PV Energy Storage Cabinet 100kW 215kWh 220kWh IP54
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
Air Cooled PV Energy Storage
,PV Energy Storage Cabinet 100kW
,PV Energy Storage Cabinet 215kWh
Product Description
100kW/215kWh Photovoltaic Clean Energy Storage Cabinet (Air-Cooled)
We offer comprehensive energy storage cabinet solutions tailored to your specific requirements. Contact us via email or WhatsApp for inquiries. Our team is ready to assist you with professional support.
Product Overview
- 220kWh industrial and commercial energy storage system with fully integrated pre-configured solution
- Ideal for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services
- Off-grid microgrid capability for areas with unstable electricity supply including villas, farms, islands, and oil extraction sites
- Key functions include self-consumption, emergency backup power, and management of oil engines/wind turbines
- Scalable solution with parallel cabinet connection for increased capacity
Key Features
Safety
- Multi-level protection: software, hardware, and electrical safeguards
- Independent cabinets for electrical and fire safety isolation
- DC to AC conversion prevents DC arcing
Efficiency
- Cluster management eliminates parallel losses
- PCS three-level topology with 99% maximum efficiency
High Integration
- Complete system integration: battery, BMS, PCS, EMS, fire protection, and temperature control
User-Friendly
- Rapid deployment capability
- Distributed architecture with easy expansion
- Fully modular design for simplified maintenance
- Cloud monitoring and mobile app support
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Cell Type | Lithium iron phosphate 280Ah battery cell |
| Rated Energy | 896Wh |
| Rated Voltage | 3.2V |
| Depth Of Discharge | 90% |
| Cycle Life | >6000 (25℃,0.5C,80%EOL) |
| DC Side Parameters | |
| Rated Capacity | 215kWh |
| Battery Voltage Range | 624V~864V |
| Maximum DC Current | 150A |
| Number of Battery Modules | 5 |
| AC Side Parameters | |
| Rated Power | 100kW |
| Rated Grid Voltage | 400V |
| Rated AC Current | 140A |
| Allowable Voltage Range | 360V~440V |
| Rated Grid Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| AC Access Method | Three-phase four-wire system |
| System Parameters | |
| System Efficiency | >90% |
| Weight | 3000kg |
| Dimensions | 1500×2300×1650mm |
| Cooling Method | Liquid cooling |
| Operating Temperature | -30~50℃ |
| Protection Grade | IP54 |
| Communication | RS485/CAN/Ethernet |
| Optional Features | |
| Wireless Communication | 4G, GPS/Beidou |
| Remote Monitoring | Cloud EMS, mobile app |
| Automatic Off-Grid Switching | STS module |
