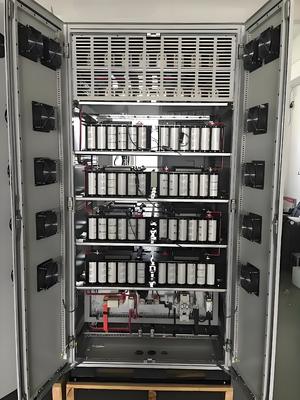

100kw/215kWh photovoltaic clean Energy Storage Cabinet air-cooled
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Type:
Energy Storage Cabinet
Product Name:
Electrical Energy Storage
Application:
Industrial And Commercial
Feature:
Waterproof
Advantage:
High Efficiency, Energy Saving
Design:
Modular Design
Highlight:
Air Cooled PV Energy Storage
,PV Energy Storage Cabinet 100kW
,PV Energy Storage Cabinet 215kWh
Product Description
100kW/215kWh Photovoltaic Clean Energy Storage Cabinet Air-Cooled
We offer a comprehensive range of energy storage cabinet products and can customize solutions to meet your specific requirements. Please contact us via email or WhatsApp for inquiries. We are dedicated to providing professional assistance and support.
Product Overview
220kWh industrial and commercial energy storage system with fully integrated pre-configured design
Suitable for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services
Off-grid microgrid capability for areas with unstable electricity, including villas, farms, islands, and oil extraction sites
Key functions: self-consumption, emergency backup power, generator management, wind turbine integration
Ideal for small and medium-sized enterprises with scalable parallel cabinet connectivity
Key Features
Security: Multi-level protection with software, hardware, and electrical safeguards
Efficiency: Cluster management eliminates parallel losses, PCS three-level topology with 99% maximum efficiency
High Integration: Complete integration of battery, BMS, PCS, EMS, fire protection, and temperature control
Ease of Use: Rapid deployment, modular design, cloud monitoring, and mobile app support
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Cell Type | Lithium Iron Phosphate 280Ah Battery Cell |
| Rated Energy | 896Wh |
| Rated Voltage | 3.2V |
| Depth of Discharge | 90% |
| Cycle Life | >6000 cycles (25℃, 0.5C, 80% EOL) |
| DC Side Energy | 215kWh |
| Battery Voltage Range | 624V~864V |
| Maximum DC Current | 150A |
| Battery Modules | 5 units |
| AC Rated Power | 100kW |
| Rated Grid Voltage | 400V |
| Allowable Voltage Range | 360V~440V |
| Power Factor | >0.99 |
| System Efficiency | >90% |
| Weight | 3000kg |
| Dimensions | 1500×2300×1650mm |
| Cooling Method | Liquid Cooling |
| Operating Temperature | -30°C~50°C |
| Protection Grade | IP54 |
| Communication | RS485/CAN/Ethernet |
Optional Features
Wireless Communication: 4G, GPS/Beidou
Remote Monitoring: Cloud EMS, Mobile App
Automatic Off-Grid Switching: STS Module
Contact Us: For customized solutions and technical inquiries, please reach out via email or WhatsApp. Our team is ready to assist you with your energy storage requirements.
