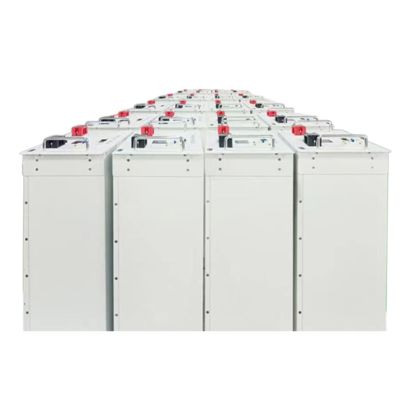

51.2V 100AH 200AH LiFePO4 Battery Storage Photovoltaic Energy Storage
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Model Number
HH-100/HH-200/HH-280
Product Name:
Photovoltaic Storage Battery
Type:
Pv Battery Storage
Application:
Communication Base Station
Certifications:
UN38.3/CE
Discharge Current:
100A 200A 280A
Rated Voltage:
Rated Voltage 51.2V
Highlight:
200AH LiFePO4 Battery Storage
,51.2V 100AH LiFePO4 Battery Storage
,51.2V Photovoltaic Energy Storage
Product Description
51.2V 100AH 200AH Lithium Iron Photovoltaic Storage Battery for Energy Storage
LiFePO₄ Photovoltaic Power Station Energy Storage Monitoring Lithium Iron Phosphate Battery 25.6V/51.2V 100AH/200AH
Customization of Energy Storage Battery Series Solutions
Product Attributes
| Attribute | Specification |
|---|---|
| Product name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/item number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard voltage | 51.2V |
| Charging current | 50A/100A/140A |
| External dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applicable types | Communication base station/photovoltaic energy storage/backup power supply |
| Product Certification | UN38.3/CE |
| Rechargeable | Yes |
| Standard capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net weight | 48kg/87kg/112kg |
| Charging Voltage | 51.2V |
| Operation temperature | 15-25℃/5%-95% RH |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design of A-grade battery cells
- 6000 cycles with a lifespan of up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Technical Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated voltage | 51.2V | 51.2V | 51.2V |
| Working voltage range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated capacity | 100Ah | 200Ah | 280Ah |
| Rated energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated charging current | 50A | 50A | 50A |
| Maximum charging current | 60A | 60A | 60A |
| Rated discharge current | 50A | 50A | 50A |
| Maximum discharge current | 100A | 200A | 280A |
| Product weight | 48kg | 87kg | 112kg |
| Optimal operating temperature | 15-25°C/5%-95% RH | ||
| Cooling method | Natural cooling | ||
| Protection grade | IP20 | ||
| Operating altitude | ≤2000m | ||
| Cycle life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C | ||
| Communication method | CAN2.0/RS485/RS232 | ||
| Protection functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge | ||
| Design service life | ≥10 years | ||
| Parallel connection support | Up to 15 units (recommended ≤5 units) | ||
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000 charge/discharge cycles. Available in multiple configurations with energy storage capacities ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, power grid, and estate applications.
Key Features
- Premium brand battery cells with 4000 charge/discharge cycles, customizable capacity configurations
- Superior electrical performance with laser welding technology, ensuring excellent cell consistency and outstanding charge/discharge characteristics
- High-quality LiFePO4 battery chemistry with over 6500 cycles and a design lifespan of 10 years
- Modular cabinet design for easy installation, simple structure, and flexible capacity expansion
Additional Specifications
| Parameter | Specification |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum available capacity | 4.8KWh |
| Rated capacity | 100Ah |
| Factory voltage | 48.0V |
| Discharge cutoff voltage | 37.5V |
| Charging cutoff voltage | 54.75V |
| Maximum continuous charge current | 100A |
| Maximum continuous discharge current | 100A |
| Dimensions | 480×480×134mm |
| Weight | 46kg |
| Charge temperature range | 0~55℃ |
| Discharge temperature range | -20~65℃ |
| Storage temperature range | -10~45℃ |
| BMS parallel support | 15 units maximum |
