215kWh IP55 Outdoor Electrical Cabinets 60KA Intelligent String Energy Storage Box
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Outdoor Electrical Enclosures Cabinets
Feature:
Weatherproof, Dustproof
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Advantage:
High Security
Highlight:
215kWh IP55 Outdoor Electrical Cabinets
,Outdoor Electrical Cabinets 60KA
,215kWh String Energy Storage Box
Product Description

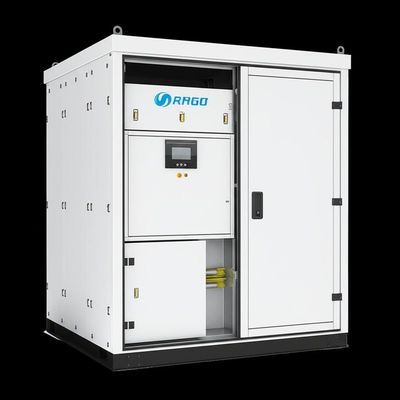

215kWh IP55 Outdoor Electrical Cabinets 60KA Intelligent String Energy Storage Box
Our outdoor electrical cabinets feature intelligent string energy storage systems designed for reliable performance in demanding environments. We offer comprehensive outdoor cabinet solutions with customizable options tailored to your specific requirements.
Product Overview
The T series cabinet is a fully enclosed, intelligent, and flexible outdoor solution featuring an open frame "Lego brick" style structure. This design enables easy spatial expansion and enhanced heat dissipation capabilities, allowing customers to efficiently upgrade existing network equipment and maximize site value.
Key Advantages
- Smooth Evolution: Modular framework enables quick on-site cabinet combinations for continuous space expansion
- Safe & Reliable: IP55 sealed design with 60KA lightning protection ensures outdoor safety
- Green Energy Efficiency: Advanced heat exchange cooling reduces site energy consumption
- Ultra-Quiet Operation: Fully enclosed design provides excellent sound insulation
- One-Stop Installation: Pre-integrated components enable direct site installation
- Intelligent Management: Remote monitoring of environmental conditions and system status
Technical Specifications
Outdoor Energy Storage System Parameters
| Parameter | Specification |
|---|---|
| Model Name | 215-2S12 |
| Rated Capacity | 215.0 kWh |
| Maximum Charge/Discharge Rate | 0.5 CP |
| Maximum Cycle Efficiency | 91.3% |
| Dimensions (W×D×H) | 1150mm × 1800mm × 2100mm |
| Weight | ≤ 2.8 T |
| Working Temperature Range | -30°C to 55°C |
| Protection Level | IP55 |
| Lightning Protection Level | Type II (AC port) |
| Noise Level | 65 dB(A) |
Battery Specifications (DC Side)
| Parameter | Specification |
|---|---|
| Battery Type | Lithium Iron Phosphate (LFP) |
| Rated Capacity | 280 Ah |
| System Configuration | 240S1P |
| Number of Battery Packs | 4 |
| Battery Voltage Range | 648-864 V |
PCS Specifications (AC Side)
| Parameter | Specification |
|---|---|
| PCS Model | PCS2000-108K-MB1 |
| Rated Power | 108 kW |
| AC Voltage Frequency | 380/400/415 V, 50/60 Hz |
| Maximum Power Factor | -1 to +1 |
Performance Features
Intelligent Temperature Control: Smart thermal management system with adaptive multi-mode switching reduces energy consumption by 30%
Extended Lifespan: Advanced heat dissipation design including high-low temperature zoning and dual-circuit cross-flow cooling ensures reliable long-term performance
Additional Capabilities
- Easy spatial expansion with modular cabinet combinations
- Upgradeable heat dissipation capacity
- Flexible internal structure compatible with 21/19-inch equipment
- Comprehensive intelligent management with remote monitoring
- Flexible power access options including remote and AC supply
- Front-opening design reduces maintenance area by 45%
Custom Solutions Available: We offer a comprehensive range of outdoor cabinet products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries and professional assistance.
