161kWh 60KA External Electrical Cabinet IP55 Waterproof Electrical Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Outdoor Electrical Enclosures Cabinets
Feature:
Weatherproof, Dustproof
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Advantage:
High Security
Highlight:
161kWh 60KA External Electrical Cabinet
,IP55 Waterproof Electrical Cabinet
,161kWh Waterproof Electrical Cabinet
Product Description

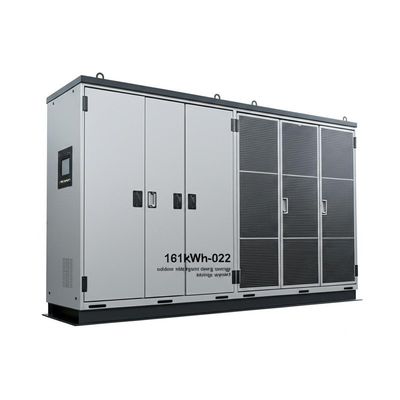

161kWh 60KA External Electrical Cabinet IP55 Waterproof Electrical Cabinet
Outdoor Electrical Cabinets 161kWh-022 outdoor intelligent string energy storage system. We offer a wide range of outdoor cabinet products and can provide custom-tailored solutions according to your specific requirements.
Product Introduction
The series cabinet is a fully enclosed, intelligent, and flexible outdoor cabinet featuring an open frame structure similar to "Lego bricks" that facilitates easy space expansion and heat dissipation improvement. This design helps customers quickly and cost-effectively expand and upgrade existing network equipment while continuously unlocking site value.
Key Advantages
- Smooth Evolution: Framework structure and modular design enable quick on-site cabinet combination for continuous space expansion
- Safe and Reliable: IP55 sealed design with 60KA maximum lightning protection for outdoor safety
- Green Energy Efficiency: Industry-leading internal and external heat exchange natural cooling design reduces energy consumption
- Ultra-Quiet Operation: Fully enclosed design provides excellent sound insulation, 10dBA lower than industry average
- One-Stop Installation: Ships with integrated equipment for direct installation, eliminating secondary construction
- Intelligent Management: Supports remote intelligent management of environmental temperature, access control, and system status
Outdoor Energy Storage System Parameters
| Model Name | 215-2S12 |
|---|---|
| Rated Capacity | 215.0kWh |
| Maximum Charge Discharge Rate | 0.5 CP |
| Maximum Cycle Efficiency | 91.3% |
| Dimensions (W×D×H) | 1150mm×1800mm×2100mm |
| Weight | ≤ 2.8 T |
| Working Temperature Range | -30°C~55°C (derating for temperatures greater than 50°C) |
| Protection Level | IP55 |
| Noise Level | 65 dB(A) |
| Lightning Protection Level | Type II (AC port) |
Battery Side Parameters (DC Side)
| Battery Type | Lithium iron phosphate (LFP) |
|---|---|
| Rated Capacity of Battery | 280Ah |
| System Battery Configuration | 240S1P |
| Number of Battery Packs | Four |
| Battery Voltage Range | 648~864 V |
PCS Side Parameters (AC Side)
| PCS Model Name | PCS2000-108K-MB1 |
|---|---|
| Rated Power | 108 kW |
| AC Voltage Frequency | 380/400/415 V (three-phase four wire), 50/60 Hz |
Intelligent Temperature Control
Through the thermal management control system of the "Smart Cold Router", adaptive adjustment control in a "heart rate like" manner is achieved, with multi-mode intelligent switching based on environmental temperature, reducing energy consumption by 30%.
Enhanced Reliability & Longevity
Through heat dissipation optimization methods including high and low temperature zoning design, ultra-low flow resistance channels, and dual circuit cross flow heat dissipation of battery cells, efficient thermal management is achieved, resulting in longer system performance life.
Key Features
- Easy Spatial Expansion: Framework structure and modular design enable convenient on-site cabinet combination
- Heat Dissipation Upgradeable: Easy upgrade of cooling capacity by replacing door-mounted heat exchanger
- Easy Business Evolution: Flexible internal structure compatible with 21/19-inch equipment
- Fully Intelligent Management: Visual monitoring and remote management capabilities
- Flexible Power Access: Supports remote power supply, AC power supply, and diesel engine interfaces
- Easy Site Selection: Front-opening design reduces maintenance area by 45%
- High Reliability: IP55 sealed design with 60KA lightning protection ensures outdoor safety
We offer a comprehensive range of outdoor cabinet products and can tailor solutions to meet your specific needs. Contact us via email or WhatsApp for inquiries. We are committed to providing comprehensive assistance for your projects.
