PRODUCTS DETAILS
Products
Contact Us
|
Fully Enclosed External Electrical Cabinet Large Waterproof Electrical Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Highlight:
Fully Enclosed External Electrical Cabinet
,External Electrical Cabinet Large
,Large Waterproof Electrical Cabinet
Product Description

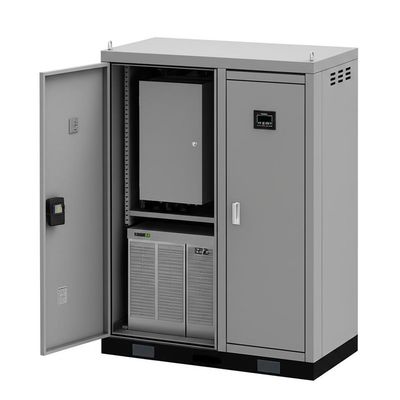

Fully Enclosed External Electrical Cabinet Large Waterproof Electrical Cabinet
Fully enclosed large Outdoor Communication Cabinet. This series of cabinets is our classic fully enclosed heat exchanger outdoor cabinet. The cabinet adopts a sealed design and an efficient heat exchanger solution, which can adapt to various harsh climatic environments such as high temperatures, severe cold, deserts, and offshore areas, meeting the rapid outdoor deployment and application of high-capacity copper cables and OLT equipment.
Product Overview
This series of cabinets is our classic fully enclosed heat exchanger outdoor cabinet. The cabinet adopts a sealed design and an efficient heat exchanger solution, which can adapt to various harsh climatic environments such as high temperatures, severe cold, deserts, and offshore areas, meeting the rapid outdoor deployment and application of high-capacity copper cables and OLT equipment. The high reliability of the D series cabinets has been recognized by operators worldwide and is currently being used in more than 100 countries globally.
Key Features
High Reliability
- The F01D2000 cabinet exhibits excellent performance in EMC (Electromagnetic Compatibility), protection, and resistance to external damage, achieving a protection level of IP55
- Suitable for various complex outdoor environments such as high temperatures, severe cold, wind, rain, and thunderstorms
- Design incorporates dual cooling units and dual fans, ensuring safer and more reliable operation
- Sealed design effectively isolates harmful external dust and corrosive gases
- Equipped with maximum 60KA lightning protection module and MDF side line security unit
- Effectively prevents lightning surge and ensures equipment safety and reliability
Green and Environmentally Friendly
- Heat exchanger fan automatically adjusts its speed, operating at low speed at room temperature
- Low noise and low power consumption
- Meets installation requirements in residential areas
High Security
- Cabinet door features built-in hinges for anti-pry and anti-theft purposes
- Built-in cabinet mounting holes ensuring good theft resistance
- Equipment compartment uses HW-2801 door lock configuration
- Wiring compartment uses HW-2801B door lock configuration
- Supports external door locks for easy protection of equipment
- Supports enhanced anti-theft measures including electronic door locks, audible and visual alarms, and reinforced protective bars for batteries
- Equipment and MDF designed in separate compartments for decentralized maintenance
One-Stop Delivery
- Cabinet integrates main equipment, power supply, MDF/ODF, monitoring system, and other components
- One-stop delivery eliminates need for secondary integration on site
- Quick installation process
Convenient Maintenance
- Equipment bay supports front-maintenance operations
- MDF in wiring bay supports front-wiring operations
- Portable lighting lamp can be installed for easy maintenance at night
- Optional AC power maintenance socket for powering maintenance terminals
- Facilitates efficient on-site maintenance
Comprehensive Monitoring
- Real-time monitoring and remote alarming of various parameters
- Environmental monitoring including temperature, humidity, and access control
- Extended environmental variables monitoring
- Power supply equipment monitoring including power systems and batteries
- Component monitoring for patch panels, lightning protection modules, and cabinet fans
Product Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 1750mm x 800mm x 1850mm (W x D x H) |
| Battery Capacity | Two sets of 150Ah batteries |
| Maximum Weight (without battery) | 550kg |
| Maximum Weight (with battery) | 950kg |
| Operating Environment | -45℃ to +45℃ |
| Noise Standards | ETS300753 CLASS 4.1E City Level |
| Heat Dissipation Form | Heat Exchanger |
| Maximum Cooling Capacity | 3000W |
Service Configuration
| Configuration | User Capacity |
|---|---|
| 2 DC MA5600T | 1536 (POTS + ADSL2+) 1024 (POTS + VDSL2/ADSL2+) 1792 VDSL2/ADSL2+ 2048 POTS |
| 2 DC HABDs + 1 DC HABF | 1312 (POTS + ADSL2+) 1856 POTS + 384 ADSL2+ 2688 POTS |
We offer a wide range of outdoor cabinet products and can tailor solutions and products to meet your specific needs. You are welcome to reach out via email or WhatsApp for inquiries. We are committed to providing you with the utmost assistance.
