Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A
| MOQ: | 1 set |
| Standard Packaging: | Wooden case |
| Delivery Period: | 3-4 weeks |
| Payment Method: | T/T |
| Supply Capacity: | 5000 pcs/month |
Outdoor Telecom Cabinet IP55
,Flatpack2 36KW -48Vdc Cabinet
,700A Outdoor Communication Cabinet
Highlight: Outdoor Telecom Cabinets 48Vdc 700A, Eltek 36KW street cabinets telecoms, street cabinets telecoms 48Vdc 700A
| Brand: | Eltek | Part No.: | CTO31240.nnnn |
| Protection Level: | IP65 | Type: | 36KW Outdoor Cabinet |
| Rectifeirs: | FP2 Rectifeirs 2000W /3000W | Product Name: | Telecom Outdoor Cabinet |
| Application: | Telecom, Railway Station, Base Station; Outdoor Cabinet For BTS | Size: | Type Enclousre |
| Service: | OEM Or ODM | Cooling System: | Aircon Or Heat Exchanger |
| Warranty: | 3 Years | Input Voltage Max: | 264Vac |
| DC Intput Voltgae: | 57,6 VDC | Dimension: | 705 X 2068 X 831 |
| MmWeight: | 168 Kg |
Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A
Product Description

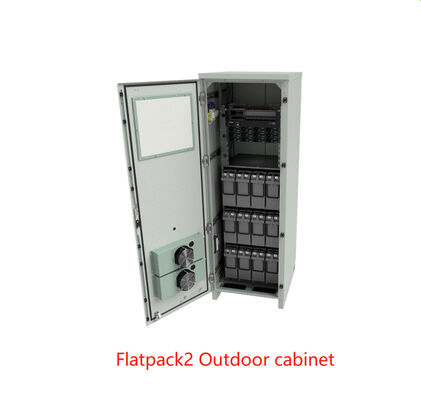

Eltek Flatpack2 36KW Outdoor Cabinet with Type 4 Enclosure -48Vdc 700A Cabinet for Telecom (CTO31240.nnnn)
Product Overview
The Eltek Flatpack2 36KW outdoor cabinet combines cost-effective design, power density, and reliability for unparalleled network availability. Designed for telecom applications with IP55 protection, this system features our Type 4 enclosure platform that can be tailored to specific requirements.
Key Features
-
Complete outdoor power system solution
-
Smartpack R controller for advanced management
-
Ethernet port for remote monitoring and control
-
Super High Efficiency rectifiers
-
Hot pluggable modules for easy maintenance
-
8x battery breaker positions
-
16x load MCB positions
-
IP55 protection rating
Technical Specifications
| Attribute | Value |
| Brand | Eltek |
| Part No. | CTO31240.nnnn |
| Protection Level | IP65 |
| Type | 36KW Outdoor cabinet |
| Rectifiers | FP2 rectifiers 2000W/3000W |
| Applications | Telecom, Railway Station, base station |
| Cooling System | Aircon or heat exchanger |
| Warranty | 3 years |
| Input Voltage Max | 264Vac |
| DC Input Voltage | 57.6 VDC |
| Dimensions (W×D×H) | 705 × 2068 × 831 mm |
| Weight | 168 kg |
Detailed Parameters
| Parameter | Specification |
| Model | 36KW |
| Power Module | Flatpack2 48/3000 SHE |
| Input Voltage Range/Frequency | 85-264 VAC / 45-66 Hz |
| Output Voltage | -48 VDC |
| Maximum Load Current | 700 A |
| Operating Temperature | -40 to +45°C |
| Dimensions | 705 × 831 × 2068 mm |
We support OEM services and can customize power solutions tailored to your requirements. Please send your detailed requirements to my our for further discussion.
