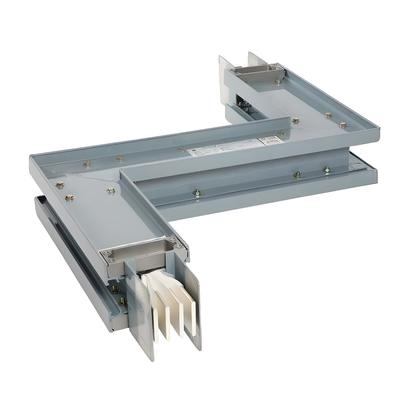

Corrosion Resistant Busduct System High Current Copper Bus Duct
| MOQ: | 1 |
| Price: | 701-70001 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Electric Bus Duct
Type:
Electrical Bus Duct System
Protection Grade:
IP54, IP66
Frequency (HZ):
50-60
Key Features:
Safety,Easy Maintenance
Application:
Substations, Captive Power Plants
Highlight:
Corrosion Resistant Busduct System
,High Current Copper Bus Duct
,Busduct System High Current
Product Description
Busduct System Accessory Connectors Support Customization
We offer a wide range of busbar trunking products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for personalized assistance.
Selection Parameters and Technical Parameters of Dense Bus Duct
| Current level | XLC /4P | XLC /5P | ||
|---|---|---|---|---|
| W(mm) | H(mm) | W(mm) | H(mm) | |
| 400 | 128 | 98 | 128 | 98 |
| 500 | 128 | 108 | 128 | 108 |
| 630 | 128 | 123 | 128 | 123 |
| 800 | 128 | 138 | 128 | 138 |
| 1000 | 128 | 158 | 128 | 158 |
| 1250 | 128 | 183 | 128 | 183 |
| 1600 | 128 | 218 | 128 | 218 |
| 2000 | 128 | 268 | 128 | 268 |
| 2500 | 128 | 280 | 128 | 280 |
| 3200 | 128 | 400 | 128 | 400 |
| 4000 | 128 | 490 | 128 | 490 |
Technical Parameters of XLC Type Bus Duct
| Execution standards | IEC60439.1-2000 IEC60439.2-2000 GB/T 7251.6-2015 |
| Ambient temperature | -5/+40°C (24-hour average not exceeding 35°C) |
| Altitude | Not exceeding 2000M |
| Protection grade | IP54, IP66 |
| Unit Length (M) | Choose between 1.6, 2.5, 3.2, 6 (0.5-6) |
| Rated operational voltage (V) | 690V (with tap unit)/1000V (without tap unit) |
| Rated insulation voltage (Ui) (V) | 800V (with tap unit)/1000V (without tap unit) |
| Frequency (HZ) | 50-60 |
| Rated current (A) | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
| Resistance (uΩ/m) | 88.9 | 71.1 | 56.4 | 40.3 | 33.2 | 24.5 | 19.5 | 14.5 | 11.3 | 8.9 | 6.7 |
| Reactance (uΩ/m) | 66.5 | 62.2 | 39.1 | 37.9 | 46.6 | 30.1 | 7.4 | 25.9 | 25.3 | 14.3 | 13 |
| Total Reactance (uΩ/m) | 289.7 | 289.7 | 184.2 | 176.3 | 221.6 | 150.7 | 130.7 | 129.6 | 120.9 | 76.2 | 69 |
| Voltage drop (mV/m) | 77.5 | 81 | 77.3 | 77.5 | 76.4 | 74.9 | 73.3 | 71.4 | 69.7 | 63 | 61.4 |
| Rated short-time withstand current (KA) | 30 | 30 | 50 | 50 | 80 |
| Rated peak withstand current (KA) | 63 | 63 | 105 | 105 | 176 |
| Temperature rise (K) | ≤70 |
| Insulation resistance (MΩ) | ≥20 |
| Electrical clearance (mm) | ≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit) |
| Creepage (mm) | ≥12.5mm (with tap cell)/≥16.0mm (without tap cell) |
| Protection circuit effectiveness (Ω) | <0.02 |
| Dielectric properties | 50Hz, 3750v/min, no breakdown, flashover |
| Installation method | Vertical or horizontal |
| Number of plug-in interfaces | Minimum 0.5/m pieces (double-sided plug available) |
| Maximum fixed spacing (m) | 4 | 4 | 3 | 3 |
| Balanced load (kg/m) | 20 | 20 | 25 | 30 |
| Concentrated load (kg) | 90 | 90 | 90 | 90 |
Key Features
- Safety, aesthetics, and reliability
- Strong overload capacity
- Low temperature rise
- Excellent load capacity and dynamic/thermal stability
- Eliminates uneven current distribution in spliced high-voltage cables
- Double-grounded shell for enhanced safety
- Excellent short-circuit resistance and low energy consumption
- Easy maintenance, disassembly, and assembly
Field of Application
Power supply systems for large factories, mining enterprises, substations, captive power plants, from generators to transformers and high-voltage distribution rooms.
Casted Busway
- Capacity range: 100A to 4000A
- Protection level up to IP68 (100% waterproof and dustproof)
- Epoxy resin casting prevents metal oxidation and corrosion
- Low line voltage drop with high instantaneous current withstand
- High structural strength and mechanical properties, maintenance-free
- Compact design with excellent dynamic/thermal stability
- Suitable for harsh indoor/outdoor environments
- Capable of continuous overload operation
Field of Application
Power plants, substations, shipbuilding, paper mills, ports, basements, petrochemical, steel, and mining industries in demanding environments.
Fire-Resistant Features
- 180-minute fire-resistant duration
- Compact design with small footprint
- Fire-resistant paint and baffles prevent flame penetration
- Low impedance with excellent dynamic/thermal stability
- Easy maintenance and quick assembly
- Withstands temperatures up to 1000°C
- Excellent electrical conductivity
- Ideal for fire-risk areas requiring continuous power
Field of Application
Schools, hospitals, hotels, financial buildings, offices, government facilities, urban transit, libraries, and textile/mining enterprises.
Advanced Features
- Ultra-thin, compact design with industry-leading copper specifications
- 360° protection against dust, corrosion, moisture, and impact
- "Sandwich" structure combining shell, insulation, and conductor
- Unique sawtooth design for enhanced heat dissipation
- Optimized structural design balancing materials, strength, and cooling
- Dual neutral system for enhanced safety
- Non-magnetic shell eliminates eddy current interference
Field of Application
Commercial complexes, real estate, data centers, hospitals, hotels, shopping malls, schools, industrial plants, and rail transit systems.
