314AH Energy Storage Power Station Rack Mounted LiFePO4 Battery Storage
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Home Battery Storage
Type:
Household Energy Storage Battery
Certification:
UN38.3/CE
Standard Capacity:
100Ah/200Ah/280Ah
Application:
Communication Base Stations,backup Power Supply
Standard Voltage:
51.2(V)
Highlight:
314AH Energy Storage Power Station
,Rack Mounted LiFePO4 Battery Storage
,314AH LiFePO4 Battery Storage
Product Description

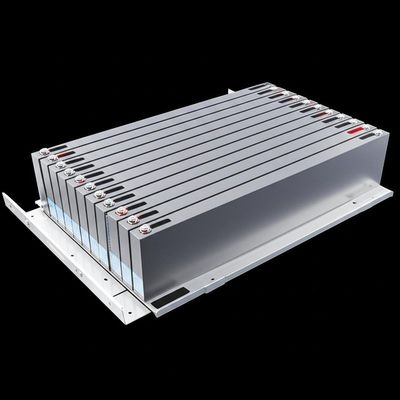

314AH Energy Storage Power Station Rack Mounted LiFePO4 Battery Storage
Rack mounted household energy storage power station featuring 51.2V 100AH-314AH 16 series LiFePO₄ lithium iron phosphate home energy storage battery systems.
We offer a comprehensive range of battery pack products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing exceptional support and service.
Product Attributes
| Attribute | Specification |
|---|---|
| Product Name | Energy Storage Battery / Lithium Iron Phosphate Battery / Rack Mounted Battery |
| Origin | Guangdong, China |
| Type | Steel Shell Lithium Battery |
| Model/Item Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applicable Types | Communication Base Station / Photovoltaic Energy Storage / Backup Power Supply |
| Product Certification | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold Rolled Steel Plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% Humidity |
Lithium Iron Phosphate Energy Storage Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Technical Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Optimal Operating Temperature & Humidity: 15-25°C / 5%-95%
Cooling Method: Natural Cooling
Protection Grade: IP20
Operating Altitude: ≤2000m
Cycle Life: ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C
Communication Method: CAN2.0 / RS485 / RS232
Protection Functions: Overtemperature, overcurrent, short circuit, overcharge, overdischarge
Design Service Life: ≥10 years
Parallel Units Supported: Up to 15 units (recommended ≤5 units)
Cooling Method: Natural Cooling
Protection Grade: IP20
Operating Altitude: ≤2000m
Cycle Life: ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C
Communication Method: CAN2.0 / RS485 / RS232
Protection Functions: Overtemperature, overcurrent, short circuit, overcharge, overdischarge
Design Service Life: ≥10 years
Parallel Units Supported: Up to 15 units (recommended ≤5 units)
Product Overview
Our standard cabinet battery packs are equipped with A-grade lithium iron phosphate cells, featuring 4000+ charging and discharging cycles. Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, grid, and estate applications.
Key Features
- Utilizes premium brand battery cells with 4000+ charge/discharge cycles and customizable capacity assembly
- Excellent electrical performance with laser welding technology for superior cell consistency and outstanding charging/discharging performance
- High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design for easy battery stacking, simple installation, and flexible capacity expansion
Additional Specifications
| Parameter | Specification |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8kWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15 units parallel connection |
