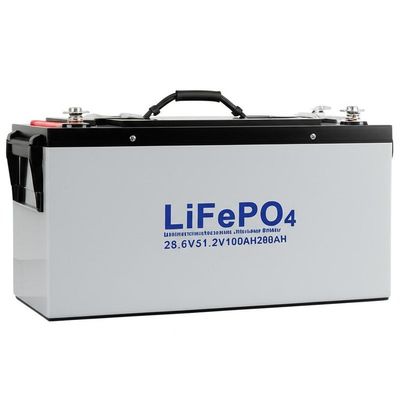

Photovoltaic LiFePO4 House Battery Storage 200AH Residential Energy Storage
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Home Battery Storage
Type:
Household Energy Storage Battery
Certification:
UN38.3/CE
Standard Capacity:
100Ah/200Ah/280Ah
Application:
Communication Base Stations,backup Power Supply
Standard Voltage:
51.2(V)
Highlight:
Photovoltaic LiFePO4 House Battery Storage
,House Battery Storage 200AH
,200AH Residential Energy Storage
Product Description
Photovoltaic LiFePO4 House Battery Storage 200AH Residential Energy Storage
LiFePO₄ Photovoltaic Home Energy Storage Battery - Lithium Iron Phosphate Battery available in 25.6V/51.2V and capacities from 100AH to 200AH.
We offer a wide range of battery pack products and can tailor solutions to meet your specific requirements.
Contact us via email or WhatsApp for inquiries. We are committed to providing comprehensive assistance.
Custom Energy Storage Battery Solutions
Product Attributes
| Product Name | Energy storage battery / Lithium iron phosphate battery / Rack mounted battery |
|---|---|
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/Item Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applications | Communication base stations / Photovoltaic energy storage / Backup power supply |
| Certifications | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg / 87kg / 112kg |
| Operating Temperature | 15-25°C / 5%-95% humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Product Specifications
| Model | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Additional Technical Specifications
| Optimal Operating Temperature/Humidity | 15-25°C / 5%-95% |
|---|---|
| Cooling Method | Natural cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 cycles @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
Product Overview
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000+ charge/discharge cycles.
Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh.
Suitable for industrial, commercial, office, grid, and estate applications.
Key Features
- Premium brand battery cells with 4000+ charge/discharge cycles and customizable capacity assembly
- Excellent electrical performance utilizing laser welding technology for superior cell consistency and outstanding charge/discharge characteristics
- High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design with simple structure for easy installation and flexible capacity expansion
Additional Product Parameters
| Type | 4.8KWh-B101 |
|---|---|
| Maximum Available Battery Capacity | 4.8kWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15 units parallel connection |
