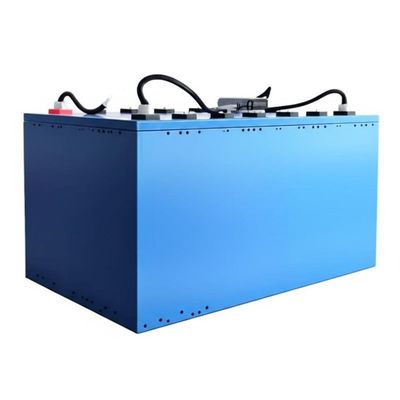

48V 10KWH Household Energy Storage Battery Base Station Lithium Iron Phosphate
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Home Battery Storage
Type:
Household Energy Storage Battery
Certification:
UN38.3/CE
Standard Capacity:
100Ah/200Ah/280Ah
Application:
Communication Base Stations,backup Power Supply
Standard Voltage:
51.2(V)
Highlight:
48V 10KWH Household Energy Storage
,10KWH Household Energy Storage Battery
,Base Station Lithium Iron Phosphate
Product Description
48V 10KWH Household Energy Storage Battery Base Station Lithium Iron Phosphate
Advanced 48V 10KWH power generation household energy storage base station utilizing lithium iron phosphate technology for reliable home energy storage solutions.
We offer a comprehensive range of battery pack products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing exceptional support and service.
Custom Energy Storage Battery Solutions
| Product Name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
|---|---|
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/Item Number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50/100/140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applicable Types | Communication base station/photovoltaic energy storage/backup power supply |
| Product Certification | UN38.3/CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg/87kg/112kg |
| Operating Temperature | 15-25°C / 5%-95% humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Product Model Specifications
| Parameter | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 100Ah | 100Ah |
| Rated Energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 48kg | 48kg |
Additional Technical Specifications
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
|---|---|
| Cooling Method | Natural cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 times @ 80% DOD, 0.5C10.5C, 25°C |
| Communication Method | CAN2.0/RS485/RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
4.8KWh-B101 Model Specifications
| Type | 4.8KWh-B101 |
|---|---|
| Maximum Available Battery Capacity | 4.8KWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -10~45℃ |
| BMS Support | 15 units parallel connection |
