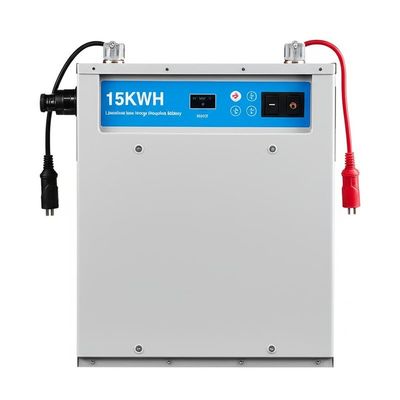

Household Energy Storage 15KWH 100Ah 200Ah Battery Storage For Home
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Home Battery Storage
Type:
Household Energy Storage Battery
Certification:
UN38.3/CE
Standard Capacity:
100Ah/200Ah/280Ah
Application:
Communication Base Stations,backup Power Supply
Standard Voltage:
51.2(V)
Highlight:
Household Energy Storage 15KWH
,200Ah Battery Storage For Home
,100Ah Battery Storage For Home
Product Description
15KWH Household Energy Storage Lithium Iron Phosphate Battery
We offer a wide range of battery pack products with customizable solutions to meet specific requirements. Contact us via email or WhatsApp for inquiries. Our team is committed to providing comprehensive support.
Customization of Energy Storage Battery Series Solutions
| Attribute | Specification |
|---|---|
| Product name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/item number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard voltage | 51.2(V) |
| Charging current | 50/100/140(A) |
| External dimensions | 483*473*177mm /483*585*236mm /483*680*236mm |
| Applicable types | Communication base station/photovoltaic energy storage/backup power supply |
| Product Certification | UN38.3/CE |
| Rechargeable | Yes |
| Standard capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net weight | 48kg/87kg/112kg |
| Charging Voltage | 51.2 |
| Operation temperature | 15-25℃/5%-95% |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design of A-grade battery cells
- 6000 cycles with a lifespan of up to 10 years
- RS485/RS232/CAN communication
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply
Product Parameters
| Model | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated voltage | 51.2V | 51.2V | 51.2V |
| Working voltage range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated capacity | 100Ah | 200Ah | 280Ah |
| Rated energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Rated charging current | 50A | 50A | 50A |
| Maximum charging current | 60A | 60A | 60A |
| Rated discharge current | 50A | 50A | 50A |
| Maximum discharge current | 100A | 200A | 280A |
| Product weight | 48kg | 87kg | 112kg |
| Optimal operating temperature and humidity | 15-25°C/5%-95% | ||
| Cooling method | Natural cooling | ||
| Protection grade | IP20 | ||
| Operating altitude | ≤2000m | ||
| Cycle life | ≥ 4000 times @ 80% DOD, 0.5C10.5C, 25°C | ||
| Communication method | CAN2.0/RS485/RS232 | ||
| Protection function | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc | ||
| Design service life | ≥ 10 years | ||
| Support the number of parallel machines | Up to 15 units (recommended ≤ 5 units) | ||
Product Introduction
Our standard cabinet battery packs feature A-grade lithium iron phosphate cells with 4000 charging/discharging cycles. Available in various styles with large capacity energy storage ranging from 8.96kWh to 61.44kWh. Ideal for industrial, commercial, office, power grid, and estate applications.
Key Features
- Premium brand battery cells with 4000 charging/discharging cycles and customizable capacity assembly
- Superior electrical performance utilizing laser welding for excellent cell consistency and outstanding charging/discharging performance
- High-quality LiFePO4 battery chemistry with over 6500 cycles and a designed service life of 10+ years
- Cabinet-style modular design for easy installation and flexible capacity expansion
Additional Product Parameters
| Project Category | Specification parameters |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum available battery capacity | 4.8KWh |
| Rated capacity | 100Ah |
| Factory voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging cutoff voltage | 54.75V |
| Maximum continuous charge current | 100A |
| Maximum continuous discharge current | 100A |
| Appearance size | 480*480*134mm |
| Weight | 46Kg |
| Charge Temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Storage temperature | -10~45℃ |
| BMS support | 15PCS parallel connection |
