IP55 Outdoor Waterproof Power Cabinet 2000W Heat Exchanger Cooling
| MOQ: | 1 |
| Price: | 599-59999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5999 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Operatingtemperaturerange:
-40°C To +60°C
Illumination:
DC48V LED Lamp
Enclosure Finish Options:
Powder Coated, Galvanized, Painted
Cabinet Layout:
Two Compartment
Certifications:
UL Listed, CE Certified
Cooling:
Air Conditioner And Fans
Corrosionresistance:
Salt Spray Resistance Up To 480 Hours
Highlight:
IP55 outdoor power cabinet
,waterproof power cabinet 2000W
,heat exchanger cooling cabinet
Product Description

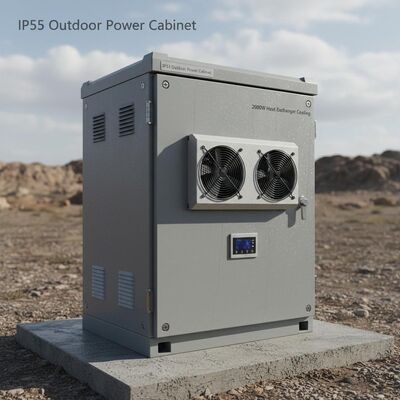

IP55 Outdoor Waterproof Power Cabinet 2000W Heat Exchanger Cooling
The T-series cabinet is a fully enclosed, intelligent, and flexible outdoor power cabinet featuring an innovative "Lego-like" open frame structure. This design enables easy spatial expansion and enhanced heat dissipation capabilities, allowing customers to efficiently expand and upgrade existing network equipment while maximizing site value.
Product Overview
Our T-series outdoor cabinets provide a comprehensive solution for various application scenarios including small, medium, and large copper wire/OLT/wavelength division equipment. Available in models T100, T300, and T500, these cabinets support multiple installation requirements such as wall-mounted, pole-mounted, seated, and elevated installations.
Key Features & Benefits
- Smooth Evolution: Modular framework structure enables quick on-site cabinet combination and continuous space expansion through battery cabinet combinations and Topbox additions
- Safe & Reliable: IP55 sealed design protects against harmful dust and corrosive gases with maximum 60KA lightning protection for enhanced outdoor safety
- Green Energy Efficiency: Industry-leading internal and external heat exchange natural cooling design reduces site energy consumption while supporting higher density equipment
- Ultra-Quiet Operation: Fully enclosed design provides excellent sound insulation with average noise levels 10dBA lower than industry standards
- One-Stop Installation: Ships with integrated host equipment, MDF, ODF, power distribution, batteries, and cooling modules for direct site installation
- Intelligent Management: Supports remote monitoring of environmental temperature, access control, lightning protection, and fan status through intelligent accessories
Technical Specifications
| Parameter | Specification |
|---|---|
| Cabinet Dimensions | 1350mm x 480mm x 1600mm (W x D x H) |
| Battery Capacity | Two sets of 100Ah batteries (expandable to 400Ah via parallel connection) |
| Maximum Weight (without battery) | 250kg |
| Maximum Weight (with battery) | 518kg |
| Operating Environment | -45℃ to +45℃ (1120W/m² solar radiation) |
| Noise Standards | ETS 300753 Class 4.1E, city level |
| Heat Dissipation Form | Heat exchanger |
| Maximum Heat Dissipation Capacity | 2000W |
Service Configuration
| Configuration | User Capacity |
|---|---|
| 2 DC MA5600T | Pure light: 16 x 16 PON Pure copper: 16 x 64 POTS/VDSL2/ADSL2+ Mixed copper plating: Any proportion of light copper mixed ratio |
| 2 DC HABDs + 1 DC HABF | Pure light: 16 x 16 PON Pure copper: 16 x 64 POTS/VDSL2/ADSL2+ Mixed copper plating: Any proportion of light copper mixed ratio |
Custom Solutions Available
We offer a comprehensive range of outdoor cabinet products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing exceptional support and service.
