Small Outdoor Power Cabinet IP55 40KA Lightning Protection For Harsh Environments
| MOQ: | 1 |
| Price: | 599-59999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5999 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Operatingtemperaturerange:
-40°C To +60°C
Illumination:
DC48V LED Lamp
Enclosure Finish Options:
Powder Coated, Galvanized, Painted
Cabinet Layout:
Two Compartment
Certifications:
UL Listed, CE Certified
Cooling:
Air Conditioner And Fans
Corrosionresistance:
Salt Spray Resistance Up To 480 Hours
Highlight:
small outdoor power cabinet IP55
,lightning protection power cabinet 40KA
,outdoor power cabinet for harsh environments
Product Description

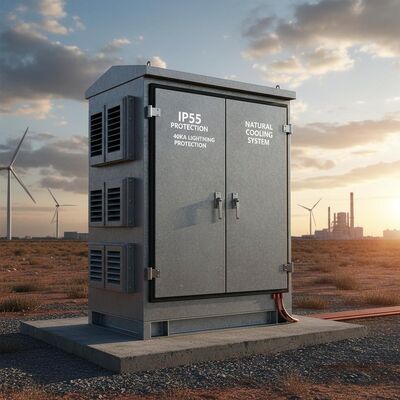

Small Outdoor Power Cabinet IP55 40KA Lightning Protection
Designed specifically for harsh environments including deserts, severe cold regions, and offshore areas.
Product Overview
The S series cabinet is a fully enclosed small-capacity outdoor power cabinet utilizing natural cooling technology. This innovative design operates without fans or heat exchangers, relying instead on heat convection and conduction principles for efficient thermal management.
Key Features
- Safe & Reliable: IP55 sealed design provides effective protection against dust and corrosive gases. Maximum 40KA lightning protection ensures enhanced safety for outdoor applications.
- Green Energy Saving: Industry-leading natural cooling design significantly reduces energy consumption. Upgradeable cooling capacity supports evolving equipment requirements.
- Ultra-Quiet Operation: Fully enclosed construction provides excellent sound insulation, averaging 10dBA lower noise levels than industry standards.
- One-Stop Installation: Pre-integrated with host equipment, MDF, ODF, power distribution, batteries, and cooling modules for immediate deployment without secondary construction.
- Intelligent Management: Remote monitoring capabilities for environmental temperature, access control, lightning protection, and fan status through intelligent accessories.
Product Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size (without battery compartment) | 750mm * 350mm * 850mm (W * D * H) |
| Cabinet Size (with battery compartment) | 750mm * 350mm * 1120mm (W * D * H) |
| Cabinet Size (with battery & forced cooling) | 750mm * 350mm * 1200mm (W * D * H) |
| Battery Capacity | 1 set of 26Ah or 40Ah batteries |
| Maximum Cabinet Weight | 72kg (basic) / 147kg (fully equipped with 40AH battery) |
| Operating Environment | -33℃ to +40℃ (with 1120W/m² solar radiation) |
| Noise Standards | ETS300753 CLASS 4.1E PROTECTED AREA LEVEL |
| Heat Dissipation | Closed self-cooling |
| Maximum Cooling Capacity | Self-cooling: 45℃/380W or 50℃/300W Forced cooling: 55℃/420W or 50℃/550W |
Available Models
F01S50 and S200 models available for wall or pole mounting. Supports both AC and remote power supply modes, meeting rapid outdoor deployment requirements for copper cables and OLT equipment.
Custom Solutions Available: We offer comprehensive outdoor cabinet products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries and technical support.
