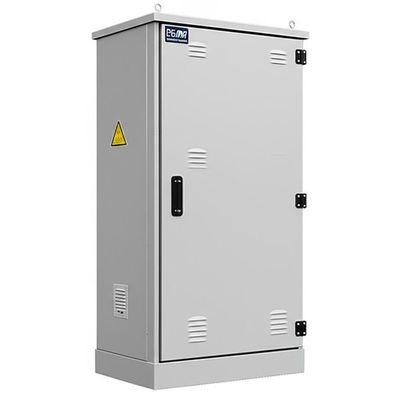

IP67 Monitoring Cabinet Stainless Steel Outdoor Server Rack Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Monitoring Cabinet
Type:
Cabinet Monitoring System
Cabinet Material:
Steel Plate/stainless Steel
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Maintenance Method:
Front Opening Door/front And Rear Opening Door
Highlight:
IP67 Monitoring Cabinet
,Monitoring Cabinet Stainless Steel
,IP67 Outdoor Server Rack Cabinet
Product Description
IP67 Monitoring Cabinet Stainless Steel Outdoor Server Rack Cabinet
IP55/IP67 Cabinet Monitoring System Outdoor monitoring station cabinet designed for reliable performance in demanding environments.
Product Overview
This series represents our classic fully enclosed heat exchanger outdoor cabinets. Featuring a sealed design and efficient heat exchanger solution, these cabinets adapt to various harsh climatic environments including high temperatures, severe cold, deserts, and offshore areas. They support rapid outdoor deployment of high-capacity copper cables and OLT equipment. The high reliability of these cabinets has been recognized by operators worldwide and they are currently deployed in over 100 countries.
Technical Specifications
| Product Model | Huahui-136868-A | Huahui-167676-A | Huahui-219595-A |
|---|---|---|---|
| External Dimensions (H*W*D) | 1300*680*680 | 1600*760*760 | 2100*950*950 |
| Internal Dimensions (H*W*D) | 1100*620*620 | 1400*660*660 | 1800*820*820 |
| Cabinet Material | Steel plate/stainless steel | ||
| Maintenance Method | Front opening door/front and rear opening door | ||
| Heat Dissipation | Air conditioner/fan | ||
| Protection Grade | IP55/IP65 | ||
| Equipment Layer Rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation Method | Ground installation | ||
| Brand | Huahui | ||
Product Attributes
Source Category
In stock
Time to Market
2022
Origin
Guangdong, China
Cabinet Capacity
Multiple sizes - consult customer service
Fastest Shipping Time
10 days
Surface Treatment
Spray
Accessory
Air-conditioning
UPS Built-in Battery Capacity
9AH/12V or above
UPS Rated Load Capacity
1601-2400W
UPS External Battery Capacity
100AH/12V or above
Invoice
Provide invoice
After-sale Service
One year warranty
Packing List
Wooden frame, wooden support, pearl cotton
Key Features
High Reliability
- Excellent EMC (Electromagnetic Compatibility), protection, and resistance to external damage with IP55 protection level
- Adapts to complex outdoor environments including high temperature, severe cold, wind, rain, and thunderstorms
- Dual heat dissipation units and dual fan design for safer, more reliable operation
- Sealed design effectively isolates harmful dust and gas corrosion
- Maximum 60KA lightning protection module and MDF side line security unit for effective lightning strike prevention
Green and Environmentally Friendly
- Heat exchanger fan with automatic speed regulation
- Low-speed rotation at room temperature with low noise and power consumption
- Meets installation requirements for residential areas
High Security
- Built-in hinges prevent prying and theft
- Built-in cabinet mounting holes for enhanced anti-theft performance
- HW-2801 type door lock for equipment compartment and HW-2801B for wiring compartment
- Supports external door locks for easy protection of internal equipment
- Enhanced anti-theft options: electronic door locks, sound and light alarms, battery reinforced protective barriers
- Separate equipment and MDF compartment design for decentralized maintenance
One Stop Delivery
- Integrated main equipment, power supply MDF/ODF, and monitoring system components
- Complete shipping solution eliminates need for secondary on-site integration
- Quick installation process
Convenient Maintenance
- Equipment compartment supports pre-maintenance
- MDF (Main Distribution Frame) in wiring compartment supports front wiring operation
- Optional portable lighting fixtures for night maintenance operations
- Optional AC power maintenance sockets for on-site maintenance power needs
Comprehensive Monitoring
- Real-time monitoring and remote alarm of various parameters inside cabinet
- Environmental monitoring: temperature, humidity, and access control
- Expansion environment monitoring capabilities
- Power supply equipment monitoring: power systems and batteries
- Component monitoring: patch panels, lightning protection modules, and cabinet fans
Professional Customization Available
We offer custom cabinets in different sizes and styles based on your specifications and drawings. No more equipment fitting issues with our tailored solutions.
Complete Solution for Outdoor Cabinet Challenges
- Intelligent constant temperature control
- Intelligent power supply systems
- Intelligent monitoring capabilities
- Advanced rainproof and dustproof protection
- Comprehensive anti-theft and anti-corrosion measures
- Full customization support
We offer a comprehensive range of Cabinet Monitoring System products and can develop tailored solutions according to your specific requirements. Contact us via email or WhatsApp for personalized assistance.
