Customized Outdoor Network Cabinet IP65 Weatherproof Data Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Monitoring Cabinet
Type:
Cabinet Monitoring System
Cabinet Material:
Steel Plate/stainless Steel
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Maintenance Method:
Front Opening Door/front And Rear Opening Door
Highlight:
Customized Outdoor Network Cabinet
,Outdoor Network Cabinet IP65
,IP65 Weatherproof Data Cabinet
Product Description

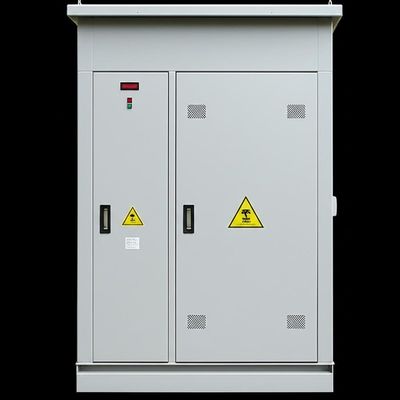

Customized Outdoor Network Cabinet IP65 Weatherproof Data Cabinet
Outdoor video surveillance network cabinet with rainproof and constant temperature security features designed for telecom power and outdoor electronic equipment applications.
We offer a wide range of outdoor cabinet products and can tailor-make solutions according to your specific requirements. Contact us via email or WhatsApp for customized solutions.
Product Specifications
| Place of Origin | Guangdong, China |
| Brand Name | Verton |
| Model Number | Verton |
| External Size | Customized Size |
| Working Temperature | -40°C ~ +55°C |
| Warranty | 12 Months |
| Material | Galvanized Steel; Double Wall; Customer Requirement |
| Surface Treatment | Powder Coating |
| Function | Waterproof Dustproof |
| Structure | Welded/Frame/Assembly |
| Weight | 100~225KG |
| Package | Wooden Box |
Production Lead Time
| Quantity (pieces) | Lead Time (days) |
|---|---|
| 1 - 5 | 14 |
| 6 - 10 | 30 |
| > 10 | To be negotiated |
Standard Model Parameters
| Product Model | Huahui-136565-A | Huahui-167575-A | Huahui-219090-A |
|---|---|---|---|
| External Dimensions (H*W*D) | 1300*650*650 | 1600*750*750 | 2100*900*900 |
| Internal Dimensions (H*W*D) | 1100*600*600 | 1400*650*650 | 1800*800*800 |
| Cabinet Material | Steel plate/stainless steel | ||
| Maintenance Method | Front opening door/front and rear opening door | ||
| Heat Dissipation Method | Air conditioner/fan | ||
| Protection Grade | IP55/IP65 | ||
| Equipment Layer Rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation Method | Ground installation | ||
| Brand | Huahui | ||
Key Features & Benefits
High Reliability
- Excellent EMC (Electromagnetic Compatibility) performance with IP55 protection rating
- Adapts to extreme outdoor environments including high temperature, severe cold, wind, rain, and thunderstorms
- Dual heat dissipation units and dual fan design for safer, more reliable operation
- Sealed design effectively isolates harmful dust and gas corrosion
- 60KA lightning protection module and MDF security unit for enhanced safety
Green & Environmentally Friendly
- Heat exchanger fan with automatic speed regulation
- Low-speed rotation at room temperature with minimal noise and power consumption
- Meets installation requirements for residential areas
High Security
- Built-in hinges prevent prying and theft
- Built-in cabinet mounting holes for enhanced anti-theft performance
- HW-2801 type door lock configuration with support for external door locks
- Optional enhanced security features: electronic door locks, sound/light alarms, battery reinforced barriers
- Separate equipment and MDF compartment design for decentralized maintenance
One-Stop Delivery
- Integrated main equipment, power supply MDF/ODF, and monitoring system components
- Complete shipping solution eliminates need for secondary on-site integration
- Quick installation and deployment
Convenient Maintenance
- Equipment compartment supports pre-maintenance operations
- MDF wiring compartment supports front wiring operation
- Optional portable lighting fixtures for night maintenance
- AC power maintenance sockets available for on-site maintenance power needs
Comprehensive Monitoring
- Real-time monitoring and remote alarm capabilities for internal cabinet conditions
- Environmental monitoring: temperature, humidity, and access control
- Expansion environment monitoring support
- Power supply equipment monitoring: power systems and batteries
- Component monitoring: patch panels, lightning protection modules, and cabinet fans
