Enclosed Data Communication Cabinets Small Exterior Electrical Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Highlight:
Enclosed Data Communication Cabinets
,Small Exterior Electrical Cabinet
,Enclosed Exterior Electrical Cabinet
Product Description

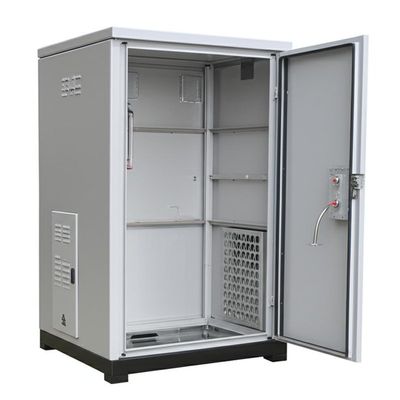

Enclosed Data Communication Cabinets Small Exterior Electrical Cabinet
Fully enclosed small communication power supply fire Outdoor Communication Cabinet. The S series cabinet is a small-capacity enclosed natural cooling cabinet designed for outdoor deployment. Utilizing an enclosed design with natural cooling based on heat convection and heat conduction principles, this cabinet achieves efficient cooling without requiring fans or heat exchangers.
Currently available in two models (F01S50 and S200), these cabinets can be installed on walls or poles and are engineered to withstand harsh environmental conditions including deserts, severe cold climates, and offshore areas. The series supports both AC and remote power supply modes, meeting rapid outdoor deployment requirements for copper cables and OLT equipment of varying capacities.
Key Features
- Safe and Reliable: Sealed IP55-rated design effectively isolates equipment from harmful dust and corrosive gases. With maximum lightning protection of 40KA, it ensures greater safety for outdoor applications while reducing equipment damage and maintenance costs.
- Green Energy Saving: Industry-leading internal and external heat exchange natural cooling design significantly reduces site energy consumption. Cooling capacity can be upgraded by replacing enhanced cooling modules, supporting evolution toward higher density and higher speed services.
- Ultra-Quiet Operation: Fully enclosed design enhances equipment reliability while providing excellent sound insulation. Average noise level is 10dBA lower than industry standards, offering greater flexibility in site selection.
- One-Stop Installation: Ships with integrated host equipment, MDF, ODF, power distribution equipment, batteries, battery heating plates, enhanced cooling modules, and cabinet fans. Ready for direct installation upon arrival, eliminating secondary construction and shortening project timelines.
- Intelligent Management: Supports remote intelligent management of environmental temperature, access control, lightning protection modules, and fan status information through intelligent accessories for comprehensive operation and maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Cabinet size without battery compartment | 750mm x 350mm x 850mm (width x depth x height) |
| Cabinet size with battery compartment | 750mm x 350mm x 1120mm (width x depth x height) |
| Cabinet size with battery compartment and forced cooling module | 750mm x 350mm x 1200mm (width x depth x height) |
| Battery capacity | 1 set of 26Ah or 40Ah batteries |
| Maximum weight of cabinet | 72kg (excluding battery compartment and forced cooling module) 147kg (including battery and forced cooling module, 40AH battery) Battery compartment: 13kg Forced cooling module: 4kg |
| Operating environment | -33℃ to +40℃ (with solar radiation of 1120W/m²) |
| Noise standards | ETS300753 CLASS 4.1E PROTECTED AREA LEVEL |
| Heat dissipation form | Closed self-cooling |
| Maximum cooling capacity | Self-cooling: 45℃/380W or 50℃/300W Forced cooling: 55℃/420W or 50℃/550W |
Custom Solutions Available
We offer a comprehensive range of outdoor cabinet products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing you with comprehensive support and assistance.
We offer a comprehensive range of outdoor cabinet products and can tailor solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries. We are committed to providing you with comprehensive support and assistance.
