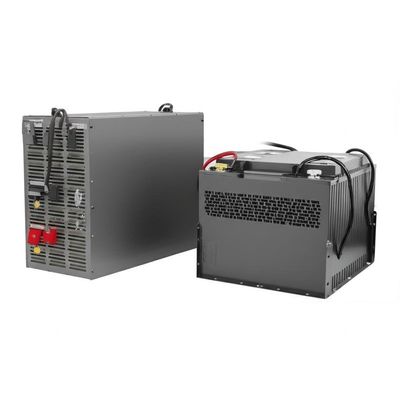

48V200Ah Lithium Iron Battery Energy Storage Battery Pack UN38.3 CE Certification
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA和MSDS
Product Name:
Energy Storage Battery Pack
Standard Capacity:
100Ah/200Ah/280Ah
Certification:
UN38.3/CE
Standard Voltage:
51.2V
Type:
Lithium Storage Battery
Communication:
RS485/RS232/CAN
Highlight:
48V200Ah lithium iron battery
,Energy Storage Battery Pack UN38.3
,UN38.3 Lithium Iron Battery
Product Description
Energy Storage Battery Pack and Management System 48V100Ah/200Ah/280Ah Lithium Iron Battery
We offer a wide range of battery pack products and can tailor solutions to meet your specific needs. Contact us via email or WhatsApp for inquiries. We are committed to providing professional assistance.
Customization of Energy Storage Battery Series Solutions
| Product name | Energy storage battery/lithium iron phosphate battery/rack mounted battery |
|---|---|
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/item number | HH-100/HH-200/HH-280 |
| Brand | HUAHUI |
| Standard voltage | 51.2(V) |
| Charging current | 50/100/140(A) |
| External dimensions | 483*473*177mm /483*585*236mm /483*680*236mm(mm) |
| Applicable types | Communication base station/photovoltaic energy storage/backup power supply |
| Product Certification | UN38.3/CE |
| Standard capacity | 100Ah/200Ah/280Ah |
| Material | Cold rolled steel plate |
| Net weight | 48kg/87kg/112kg |
| Operation temperature | 15-25℃/5%-95% |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design of A-grade battery cells
- 6000 cycles with a lifespan of up to 10 years
- RS485/RS232/CAN communication
- Suitable for communication base station/photovoltaic energy storage/backup power supply
Product Parameters
| Model | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated voltage | 51.2V | 51.2V | 51.2V |
| Working voltage range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated capacity | 100Ah | 100Ah | 100Ah |
| Rated energy | 51.2kWh | 10.24kWh | 14.336kWh |
| Rated charging current | 50A | 50A | 50A |
| Maximum charging current | 60A | 60A | 60A |
| Rated discharge current | 50A | 50A | 50A |
| Maximum discharge current | 100A | 200A | 280A |
| Product weight | 48kg | 48kg | 48kg |
| Optimal operating temperature and humidity | 15-25°C/5%-95% | ||
| Cooling method | Natural cooling | ||
| Protection grade | IP20 | ||
| Operating altitude | ≤2000m | ||
| Cycle life | ≥ 4000 times @ 80% DOD, 0.5C10.5C, 25°C | ||
| Communication method | CAN2.0/RS485/RS232 | ||
| Protection function | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc | ||
| Design service life | ≥ 10 years | ||
| Support the number of parallel machines | Up to 15 units (recommended ≤ 5 units) | ||
Product Introduction
Our standard cabinet battery packs are equipped with A-grade lithium iron phosphate cells, featuring 4000 cycles of charging and discharging. Available in different styles with large capacity energy storage ranging from 8.96kWh to 61.44 kWh. Suitable for industrial, commercial, office, power grid, and estate applications.
Key Features
- Premium brand battery cells with 4000 charge/discharge cycles and customizable capacity assembly
- Excellent electrical performance with laser welding technology, ensuring good cell consistency and outstanding charging/discharging performance
- High quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design for easy installation and flexible capacity expansion
Additional Product Parameters
| Project Category | Specification parameters |
|---|---|
| Type | 4.8KWh-B101 |
| Maximum available battery capacity | 4.8KWh |
| Rated capacity | 100Ah |
| Factory voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging cutoff voltage | 54.75V |
| Maximum continuous charge current | 100A |
| Maximum continuous discharge current | 100A |
| Appearance size | 480*480*134mm |
| Weight | 46Kg |
| Charge Temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Storage temperature | -10~45℃ |
| BMS support | 15PCS parallel connection |
