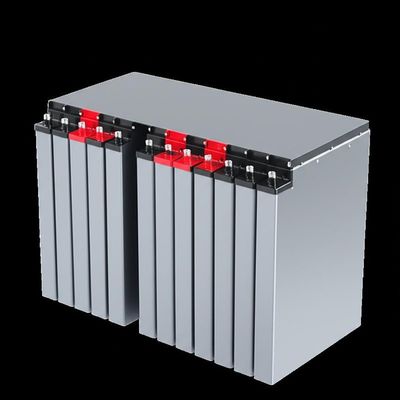

Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
| MOQ: | 1 |
| Price: | 399-39999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Energy Storage Battery Pack
Standard Capacity:
100Ah/200Ah/280Ah
Certification:
UN38.3/CE
Standard Voltage:
51.2V
Type:
Lithium Storage Battery
Communication:
RS485/RS232/CAN
Highlight:
Customized Energy Storage Lithium Battery
,280Ah Lithium Storage Batteries
,Energy Storage Lithium Battery 280Ah
Product Description
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Source manufacturer supports customized Energy Storage Battery Pack, lithium iron phosphate 280Ah large capacity energy storage lithium battery pack. We offer a wide range of battery pack products and can tailor solutions to meet your specific requirements.
Product Attributes
| Product Name | Energy storage battery / lithium iron phosphate battery / rack mounted battery |
| Origin | Guangdong, China |
| Type | Steel shell lithium battery |
| Model/Item Number | HH-100 / HH-200 / HH-280 |
| Brand | HUAHUI |
| Standard Voltage | 51.2V |
| Charging Current | 50A / 100A / 140A |
| External Dimensions | 483×473×177mm / 483×585×236mm / 483×680×236mm |
| Applicable Types | Communication base station / photovoltaic energy storage / backup power supply |
| Product Certification | UN38.3 / CE |
| Rechargeable | Yes |
| Standard Capacity | 100Ah / 200Ah / 280Ah |
| Material | Cold rolled steel plate |
| Net Weight | 48kg / 87kg / 112kg |
| Charging Voltage | 51.2V |
| Operating Temperature | 15-25°C / 5%-95% humidity |
Lithium Iron Phosphate Energy Storage Battery Features
- Large capacity design using A-grade battery cells
- 6000 cycles with lifespan up to 10 years
- RS485/RS232/CAN communication interfaces
- Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Product Specifications
| Model | HH-48100-01 | HH-48200-01 | HH-48280-01 |
|---|---|---|---|
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40V-58.4V | 40V-58.4V | 40V-58.4V |
| Rated Capacity | 100Ah | 200Ah | 280Ah |
| Rated Energy | 5.12kWh | 10.24kWh | 14.336kWh |
| Rated Charging Current | 50A | 50A | 50A |
| Maximum Charging Current | 60A | 60A | 60A |
| Rated Discharge Current | 50A | 50A | 50A |
| Maximum Discharge Current | 100A | 200A | 280A |
| Product Weight | 48kg | 87kg | 112kg |
Technical Specifications
| Optimal Operating Temperature & Humidity | 15-25°C / 5%-95% |
| Cooling Method | Natural cooling |
| Protection Grade | IP20 |
| Operating Altitude | ≤2000m |
| Cycle Life | ≥4000 times @ 80% DOD, 0.5C/0.5C, 25°C |
| Communication Method | CAN2.0 / RS485 / RS232 |
| Protection Functions | Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Design Service Life | ≥10 years |
| Maximum Parallel Units | Up to 15 units (recommended ≤5 units) |
Product Introduction
Our standard cabinet battery packs are equipped with A-grade lithium iron phosphate cells, featuring 4000 cycles of charging and discharging. Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh. Suitable for industrial, commercial, office, power grid, and estate applications.
Key Features
- Utilizes well-known brand battery cells with 4000 charge/discharge cycles and customizable capacity assembly
- Excellent electrical performance with laser welding technology, ensuring superior battery cell consistency and outstanding charging/discharging performance
- High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
- Cabinet-style modular design with simple structure for easy installation and flexible capacity expansion
Additional Specifications
| Type | 4.8KWh-B101 |
| Maximum Available Battery Capacity | 4.8KWh |
| Rated Capacity | 100Ah |
| Factory Voltage | 48.0V |
| Discharge Cut-off Voltage | 37.5V |
| Charging Cutoff Voltage | 54.75V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Appearance Size | 480×480×134mm |
| Weight | 46kg |
| Charge Temperature | 0-55°C |
| Discharge Temperature | -20 to 65°C |
| Storage Temperature | -10 to 45°C |
| BMS Support | 15 units parallel connection |
We welcome your inquiries via email or WhatsApp. Our team is committed to providing comprehensive assistance and customized solutions tailored to your specific energy storage requirements.
