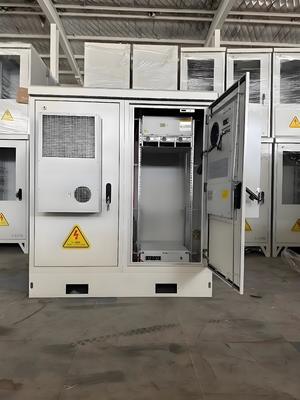

60KA Outdoor Battery Cabinet IP55 Protection For Communication Base Station
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Battery Cabinet
Type:
Battery Storage Cabinet
Feature:
Weather Resistant
Advantage:
Intelligent String Energy Storage Solution
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Highlight:
60KA Outdoor Battery Cabinet
,Outdoor Battery Cabinet IP55
,Communication Base Station Battery Cabinet
Product Description
60KA Outdoor Battery Cabinet IP55 Protection For Communication Base Station
Outdoor Battery Cabinet for communication base station designed for reliable performance in demanding environments.
We offer a wide range of outdoor cabinet products and can provide custom solutions tailored to your specific requirements. Contact us via email or WhatsApp for personalized assistance.
Product Introduction
This series features our classic fully enclosed heat exchanger outdoor cabinet. The sealed design and efficient heat exchanger solution adapt to various harsh climatic environments including high temperatures, severe cold, deserts, and offshore areas. Ideal for rapid outdoor deployment of high-capacity copper cables and OLT equipment, these cabinets are recognized by operators worldwide and currently deployed in over 100 countries.
Product Specifications
| PRODUCT MODEL | Huahui-136868-A | Huahui-167676-A | Huahui-219595-A |
|---|---|---|---|
| External dimensions (H * W * D) | 1300*680*680 | 1600*760*760 | 2100*950*950 |
| Internal dimensions (H * W * D) | 1100*620*620 | 1400*660*660 | 1800*820*820 |
| Cabinet material | Steel plate/stainless steel | ||
| Maintenance method | Front opening door/front and rear opening door | ||
| Heat dissipation method | Air conditioner/fan | ||
| Protection grade | IP55/IP65 | ||
| Equipment layer rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation method | Ground installation | ||
| Brand | Huahui | ||
Product Attributes
| Source category | In stock | Time to market | 2022 |
| Origin | Guangdong, China | Manufacturing origin | Guangdong, China |
| Cabinet capacity | Multiple sizes available - please consult customer service for details | ||
| Fastest shipping time | 10 days | Surface Treatment | Spray |
| Accessory | Air-conditioning | UPS built-in battery capacity | 9AH/12V or above |
| UPS external battery capacity | 100AH/12V or above | UPS rated load capacity | 1601-2400w |
| Invoice | Provide invoice | After-sale service | One year warranty |
| Packing list | Wooden frame, wooden support, pearl cotton | ||
Key Features
High Reliability
- Excellent EMC (Electromagnetic Compatibility), protection, and resistance to external damage with IP55 protection rating
- Adapts to complex outdoor environments including high temperature, severe cold, wind, rain, and thunderstorms
- Dual heat dissipation units and dual fan design for safer, more reliable operation
- Sealed design effectively isolates harmful dust and gas corrosion
- Maximum 60KA lightning protection module and MDF side line security unit for effective lightning strike prevention
Green and Environmentally Friendly
- Heat exchanger fan with automatic speed regulation
- Low-speed rotation at room temperature with low noise and power consumption
- Meets installation requirements for residential areas
High Security
- Built-in hinges prevent prying and theft
- Built-in cabinet mounting holes for enhanced anti-theft performance
- HW-2801 type door lock configuration for equipment compartment
- HW-2801B type door lock configuration for wiring compartment
- Supports external door locks for equipment protection
- Optional enhanced anti-theft measures: electronic door locks, sound and light alarms, battery reinforced protective barriers
- Separate equipment and MDF compartment design for decentralized maintenance
One Stop Delivery
- Integrated cabinet with main equipment, power supply MDF/ODF, and monitoring system
- Complete shipping solution eliminates need for secondary on-site integration
- Quick installation process
Convenient Maintenance
- Equipment compartment supports pre-maintenance
- MDF (Main Distribution Frame) in wiring compartment supports front wiring operation
- Optional portable lighting fixtures for night maintenance operations
- Optional AC power maintenance sockets for on-site maintenance power requirements
Comprehensive Monitoring
- Real-time monitoring and remote alarm for various cabinet parameters
- Environmental monitoring: temperature, humidity, and access control
- Expansion environment monitoring capabilities
- Power supply equipment monitoring: power systems and batteries
- Component monitoring: patch panels, lightning protection modules, and cabinet fans
Professional Customization Available
We provide custom cabinet solutions in different sizes and styles based on your specifications and drawings.
Complete Solution for 6 Major Outdoor Cabinet Challenges
- Intelligent constant temperature control
- Intelligent power supply management
- Intelligent monitoring systems
- Advanced rainproof and dustproof protection
- Comprehensive anti-theft and anti-corrosion measures
- Full customization support for specific requirements
