161kWh Outdoor Battery Cabinet Modular Energy Storage System
| MOQ: | 1 |
| Price: | 700-7000 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Battery Cabinet
Type:
Battery Storage Cabinet
Feature:
Weather Resistant
Advantage:
Intelligent String Energy Storage Solution
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Highlight:
161kWh Outdoor Battery Cabinet
,Modular Energy Storage System
,161kWh Modular Energy Storage
Product Description

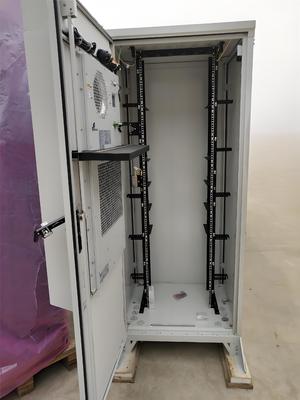

161kWh Outdoor Battery Cabinet Modular Energy Storage System
The 161kWh-022 Outdoor Battery Cabinet is an intelligent string energy storage system featuring a fully enclosed, modular design. This innovative cabinet utilizes an open frame structure similar to "Lego bricks" that enables easy spatial expansion and enhanced heat dissipation capabilities, allowing customers to efficiently expand and upgrade existing network equipment while maximizing site value.
Product Overview
Our T series outdoor cabinet represents a breakthrough in intelligent, flexible energy storage solutions. The modular framework design facilitates straightforward space expansion and heat dissipation improvements, supporting rapid and cost-effective upgrades to existing network infrastructure. Equipped with an intelligent power system, it enables comprehensive management of site security, operational status, and battery performance.
Key Advantages
- Smooth Evolution: Modular design enables quick on-site cabinet combinations for continuous space expansion, extending backup power time and business capacity
- Safe & Reliable: IP55 sealed protection against dust and corrosive gases with 60KA lightning protection
- Green Energy Efficiency: Advanced heat exchange cooling design reduces energy consumption while supporting higher density equipment
- Ultra-Quiet Operation: Fully enclosed design provides excellent sound insulation, averaging 10dBA lower than industry standards
- One-Stop Installation: Pre-integrated components enable direct site installation without secondary construction
- Intelligent Management: Remote monitoring capabilities for environmental conditions, access control, and system status
Energy Storage System Specifications
| Model Name | 200kWh-021 | 161KWH-022 | 129kWh-023 | 97KWH-011 |
|---|---|---|---|---|
| Battery Configuration | 12S1P | 10S1P | ||
| Rated Capacity | 193.5kWh | 161.3kWh | 129kWh | 129.0kWh |
| Max Charging Power | ≤100 kW | |||
| Max Discharge Power | ≤100 kW | ≤100 kW | ≤100 kW | ≤92 kW |
| Dimensions (W×H×D) | 1810×2135×1200mm | 2570×2135×1200mm | ||
| Weight (with battery) | ≤2950kg | ≤2690kg | ≤2430kg | ≤2170kg |
| Weight (without battery) | ≤1070kg | ≤1070kg | ≤1090kg | ≤1130kg |
| Operating Temperature | -30°C to 55°C | |||
| Protection Rating | IP55 | |||
Battery Specifications (DC Side)
Battery Type:
Lithium Iron Phosphate (LFP)
Rated Capacity:
280Ah
System Configuration:
240S1P
Number of Battery Packs:
Four
Voltage Range:
648-864V
Rated Working Current:
140A
PCS Specifications (AC Side)
PCS Model:
PCS2000-108K-MB1
Rated Power:
108kW
Rated AC Current:
164.1A
AC Voltage & Frequency:
380/400/415V (three-phase four wire), 50/60Hz
Advanced Thermal Management
Our "Smart Cold Router" thermal management system provides adaptive, heart rate-like control with multi-mode intelligent switching based on environmental temperature, reducing energy consumption by 30% while extending system lifespan through optimized heat dissipation.
System Features
- Easy Spatial Expansion: Modular framework enables convenient on-site cabinet combinations for continuous space expansion
- Upgradable Cooling: Replaceable door-mounted heat exchangers allow heat dissipation capacity upgrades
- Flexible Business Evolution: Adjustable internal structure compatible with 21/19-inch equipment and flexible wiring configurations
- Intelligent Management: Comprehensive remote monitoring of environmental conditions, access control, and battery health
- Multiple Power Options: Supports remote power, AC power, and diesel engine interfaces
- Optimized Site Selection: Front-opening design reduces maintenance area by 45% with Reshell mode support
- High Reliability: IP55 protection with 60KA lightning protection for outdoor safety
Custom Solutions Available
We offer comprehensive outdoor cabinet products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries. We are committed to providing exceptional support and service.
