Outdoor Telecommunication Cabinets IP55 Telecom Battery Cabinet Customized
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Highlight:
Outdoor Telecommunication Cabinets IP55
,Telecom Battery Cabinet Customized
,IP55 Telecom Battery Cabinet
Product Description

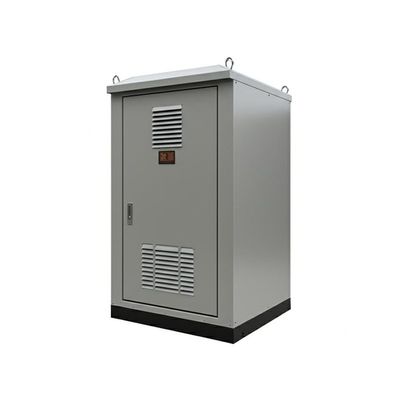

Outdoor Telecommunication Cabinets IP55 Telecom Battery Cabinet
Customized double-door outdoor power cabinets with IP55 protection rating, designed for comprehensive telecom equipment housing in various environmental conditions.
We offer a wide range of outdoor cabinet products and can tailor-make solutions according to your specific requirements. Contact us via email or WhatsApp for customized solutions.
Product Specifications
| Place of Origin | Guangdong, China |
| Brand Name | Verton |
| Model Number | Verton |
| External Size | Customized Size |
| Working Temperature | -40°C ~ +55°C |
| Warranty | 12 Months |
| Material | Galvanized Steel; Double Wall; Customer Requirement |
| Application | Telecom Power Outdoor Electronic Equipment |
| Surface Treatment | Powder Coating |
| Function | Waterproof Dustproof |
| Structure | Welded/Frame/Assembly |
| Weight | 100~225KG |
Production Lead Time
| Quantity (pieces) | Lead Time (days) |
|---|---|
| 1 - 5 | 14 |
| 6 - 10 | 30 |
| > 10 | To be negotiated |
Standard Model Parameters
| Product Model | Huahui-136565-A | Huahui-167575-A | Huahui-219090-A |
|---|---|---|---|
| External Dimensions (H*W*D) | 1300*650*650 | 1600*750*750 | 2100*900*900 |
| Internal Dimensions (H*W*D) | 1100*600*600 | 1400*650*650 | 1800*800*800 |
| Cabinet Material | Steel plate/stainless steel | ||
| Maintenance Method | Front opening door/front and rear opening door | ||
| Heat Dissipation Method | Air conditioner/fan | ||
| Protection Grade | IP55/IP65 | ||
| Equipment Layer Rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation Method | Ground installation | ||
| Brand | Huahui | ||
Key Features & Benefits
High Reliability
- Excellent EMC performance with IP55 protection rating
- Adapts to extreme outdoor environments: high temperature, severe cold, wind, rain, thunderstorms
- Dual heat dissipation units and dual fan design for enhanced safety
- Sealed construction effectively isolates dust and corrosive gases
- 60KA lightning protection module and MDF security unit for equipment safety
Green & Environmentally Friendly
- Heat exchanger fan with automatic speed regulation
- Low-speed operation at room temperature with minimal noise and power consumption
- Meets residential area installation requirements
Enhanced Security
- Built-in hinges prevent prying and theft
- Integrated cabinet mounting holes for superior anti-theft performance
- HW-2801/HW-2801B door lock configurations with external lock support
- Optional electronic door locks, alarms, and battery protective barriers
- Separate equipment and MDF compartments for decentralized maintenance
One-Stop Delivery
- Integrated main equipment, power supply MDF/ODF, and monitoring systems
- Complete shipping solution eliminates need for on-site integration
- Quick installation process
Convenient Maintenance
- Pre-maintenance support for equipment compartment
- Front wiring operation for MDF in wiring compartment
- Optional portable lighting fixtures for night maintenance
- AC power maintenance sockets for on-site maintenance equipment
Comprehensive Monitoring
- Real-time monitoring and remote alarm capabilities
- Environmental monitoring: temperature, humidity, access control
- Expansion environment monitoring support
- Power supply equipment monitoring: power systems and batteries
- Component monitoring: patch panels, lightning protection, cabinet fans
