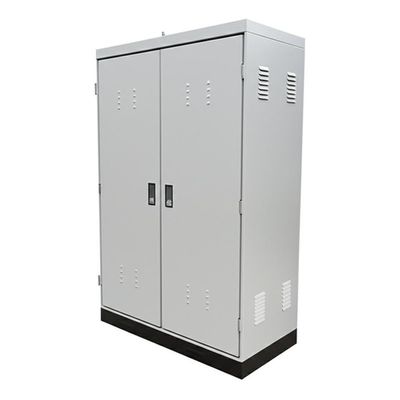

Integrated Outdoor Power Cabinet Dustproof External Telecoms Cabinet
| MOQ: | 1 |
| Price: | 599-59999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5999 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Operatingtemperaturerange:
-40°C To +60°C
Illumination:
DC48V LED Lamp
Enclosure Finish Options:
Powder Coated, Galvanized, Painted
Cabinet Layout:
Two Compartment
Certifications:
UL Listed, CE Certified
Cooling:
Air Conditioner And Fans
Corrosionresistance:
Salt Spray Resistance Up To 480 Hours
Highlight:
Integrated Outdoor Power Cabinet
,Outdoor Power Cabinet Dustproof
,Dustproof External Telecoms Cabinet
Product Description
Integrated Outdoor Power Cabinet Dustproof External Telecoms Cabinet
Communication base station outdoor integrated cabinet for telecommunications power and outdoor electronic equipment applications.
We offer a comprehensive range of outdoor cabinet products and provide customized solutions tailored to your specific requirements. Contact us via email or WhatsApp for personalized assistance.
Product Specifications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Verton |
| Model Number | Verton |
| External Size | Customized Size |
| Product Name | Cabinet Electrical Telecom Cabinet with External Air Conditioner |
| Working Temperature | -40°C ~ +55°C |
| Warranty | 12 Months |
| Material | Galvanized Steel; Double Wall; Customer Requirement |
| Application | Telecom Power Outdoor Electronic Equipment |
| Package | Wooden Box |
| Surface Treatment | Powder Coating |
| Function | Waterproof Dustproof |
| Structure | Welded/Frame/Assembly |
| Weight | 100~225KG |
Lead Time
| Quantity (pieces) | 1 - 5 | 6 - 10 | > 10 |
|---|---|---|---|
| Lead Time (days) | 14 | 30 | To be negotiated |
Product Parameters
| Product Model | Huahui-136565-A | Huahui-167575-A | Huahui-219090-A |
|---|---|---|---|
| External Dimensions (H*W*D) | 1300*650*650 | 1600*750*750 | 2100*900*900 |
| Internal Dimensions (H*W*D) | 1100*600*600 | 1400*650*650 | 1800*800*800 |
| Cabinet Material | Steel plate/stainless steel | ||
| Maintenance Method | Front opening door/front and rear opening door | ||
| Heat Dissipation Method | Air conditioner/fan | ||
| Protection Grade | IP55/IP65 | ||
| Equipment Layer Rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation Method | Ground installation | ||
| Brand | Huahui | ||
Key Features
High Reliability
- Excellent EMC performance with IP55 protection level
- Adapts to extreme outdoor environments including high temperature, severe cold, wind, rain, and thunderstorms
- Dual heat dissipation units and dual fan design for safer, more reliable operation
- Sealed design effectively isolates harmful dust and gas corrosion
- Maximum 60KA lightning protection module and MDF security unit for enhanced safety
Green and Environmentally Friendly
- Heat exchanger fan with automatic speed regulation
- Low-speed rotation at room temperature with low noise and power consumption
- Meets installation requirements for residential areas
High Security
- Built-in hinges prevent prying and theft
- Built-in cabinet mounting holes for enhanced anti-theft performance
- HW-2801 type door lock configuration for equipment compartment
- Supports external door locks and enhanced anti-theft measures including electronic door locks, alarms, and battery reinforced protective barriers
- Separate equipment and MDF compartment design for decentralized maintenance
One Stop Delivery
- Integrated main equipment, power supply MDF/ODF, and monitoring system
- Complete shipping without need for secondary integration on site
- Quick installation process
Convenient Maintenance
- Equipment compartment supports pre-maintenance
- MDF in wiring compartment supports front wiring operation
- Optional portable lighting fixtures for night maintenance
- Optional AC power maintenance sockets for on-site maintenance power
Comprehensive Monitoring
- Real-time monitoring and remote alarm of various cabinet parameters
- Environmental monitoring including temperature, humidity, and access control
- Expansion environment monitoring capabilities
- Power supply equipment monitoring for power systems and batteries
- Component monitoring for patch panels, lightning protection modules, and cabinet fans
