IP55 Outdoor Communication Cabinet Base Station Outdoor Electrical Cabinet
| MOQ: | 1 |
| Price: | 699-69999 USD per set |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | Expected shipment within 30 days after successful payment |
| Payment Method: | D/P T/T |
| Supply Capacity: | 5000 units per year |
Detail Information
Place of Origin
Shenzhen, Guangdong, China
Brand Name
HUAHUI
Certification
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Product Name:
Outdoor Electrical Cabinets
Type:
Telecom Battery Cabinet
Protection Grade:
IP55/IP65
Installation Method:
Ground Installation
Feature:
High Security
Application:
4G/5G Communication Base Station
Highlight:
IP55 Outdoor Communication Cabinet
,Base Station Outdoor Electrical Cabinet
,IP55 Outdoor Electrical Cabinet
Product Description

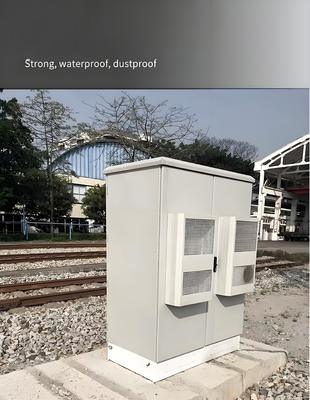

IP55 Outdoor Communication Cabinet Base Station Outdoor Electrical Cabinet
This series of cabinets represents our classic fully enclosed heat exchanger outdoor cabinet solution. Designed with sealed construction and efficient heat exchange technology, these cabinets adapt to demanding climatic conditions including high temperatures, extreme cold, desert environments, and coastal areas. They support rapid outdoor deployment of high-capacity copper cables and OLT equipment.
Global Reliability
The high reliability of this cabinet series has earned recognition from operators worldwide, with current deployment in over 100 countries.
Product Specifications
| Product Model | Huahui-136565-A | Huahui-167575-A | Huahui-219090-A |
|---|---|---|---|
| External Dimensions (H*W*D) | 1300*650*650mm | 1600*750*750mm | 2100*900*900mm |
| Internal Dimensions (H*W*D) | 1100*600*600mm | 1400*650*650mm | 1800*800*800mm |
| Cabinet Material | Steel plate/stainless steel | ||
| Maintenance Method | Front opening door/front and rear opening door | ||
| Heat Dissipation Method | Air conditioner/fan | ||
| Protection Grade | IP55/IP65 | ||
| Equipment Layer Rack | Equipment rack/battery rack/comprehensive rack | ||
| Installation Method | Ground installation | ||
| Brand | Huahui | ||
Product Attributes
Source Category: In stock
Time to Market: 2022
Origin: Guangdong, China
Time to Market: 2022
Origin: Guangdong, China
Cabinet Capacity: Multiple sizes - consult customer service
Fastest Shipping Time: 10 days
Surface Treatment: Spray
Fastest Shipping Time: 10 days
Surface Treatment: Spray
UPS Built-in Battery Capacity: 9AH/12V or above
UPS Rated Load Capacity: 1601-2400W
UPS Rated Load Capacity: 1601-2400W
UPS External Battery Capacity: 100AH/12V or above
Invoice: Provide invoice
Invoice: Provide invoice
After-sale Service: One year warranty
Packing List: Wooden frame, wooden support, pearl cotton
Packing List: Wooden frame, wooden support, pearl cotton
Key Features & Benefits
High Reliability Performance
- Excellent EMC (Electromagnetic Compatibility), protection, and external damage resistance
- IP55 protection rating for harsh outdoor environments
- Adapts to extreme conditions including high temperature, severe cold, wind, rain, and thunderstorms
- Dual heat dissipation units and dual fan design for enhanced operational safety
- Sealed construction effectively isolates harmful dust and corrosive gases
- 60KA lightning protection module and MDF side line security unit for equipment safety
Green Environmental Design
Heat exchanger fan features automatic speed regulation with low-speed rotation at room temperature, resulting in minimal noise, reduced power consumption, and compliance with residential area installation requirements.
Enhanced Security Features
- Built-in hinges prevent prying and theft attempts
- Integrated cabinet mounting holes for superior anti-theft performance
- HW-2801 type door lock for equipment compartment, HW-2801B for wiring compartment
- Support for external door locks and enhanced security measures including electronic locks, alarms, and reinforced battery barriers
- Separate equipment and MDF compartment design for decentralized maintenance
Complete Integrated Solution
Cabinet integrates main equipment, power supply MDF/ODF, monitoring systems and other components for one-stop delivery. No secondary integration required on site, enabling rapid installation.
Convenient Maintenance Access
- Equipment compartment supports pre-maintenance operations
- MDF (Main Distribution Frame) in wiring compartment supports front wiring
- Optional portable lighting fixtures for nighttime maintenance
- AC power maintenance sockets available for maintenance terminals and on-site power needs
Comprehensive Monitoring System
- Real-time monitoring and remote alarm capabilities for internal cabinet conditions
- Environmental monitoring including temperature, humidity, and access control
- Expansion environment monitoring support
- Power supply equipment monitoring for systems and batteries
- Component monitoring for patch panels, lightning protection modules, and cabinet fans
Professional Customization Available
We provide professional customization services to ensure perfect equipment fit. Various cabinet sizes and styles can be customized according to your specifications and drawings.
One-Stop Solution for Outdoor Cabinet Challenges
- Intelligent constant temperature control
- Intelligent power supply management
- Intelligent monitoring systems
- Advanced rainproof and dustproof protection
- Comprehensive anti-theft and anti-corrosion measures
- Full customization support for specific requirements
